-5%
FG-81E-POE
Model: FG-81E-POE – Fortinet NGFW Entry-level Series FortiGate 81E POE
Details: Fortinet FG-81E-POE 16 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 HA port, 12 x PoE ports). 128GB onboard storage. Max managed FortiAPs (Total/Tunnel) 32/16
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-81E-POE Overview

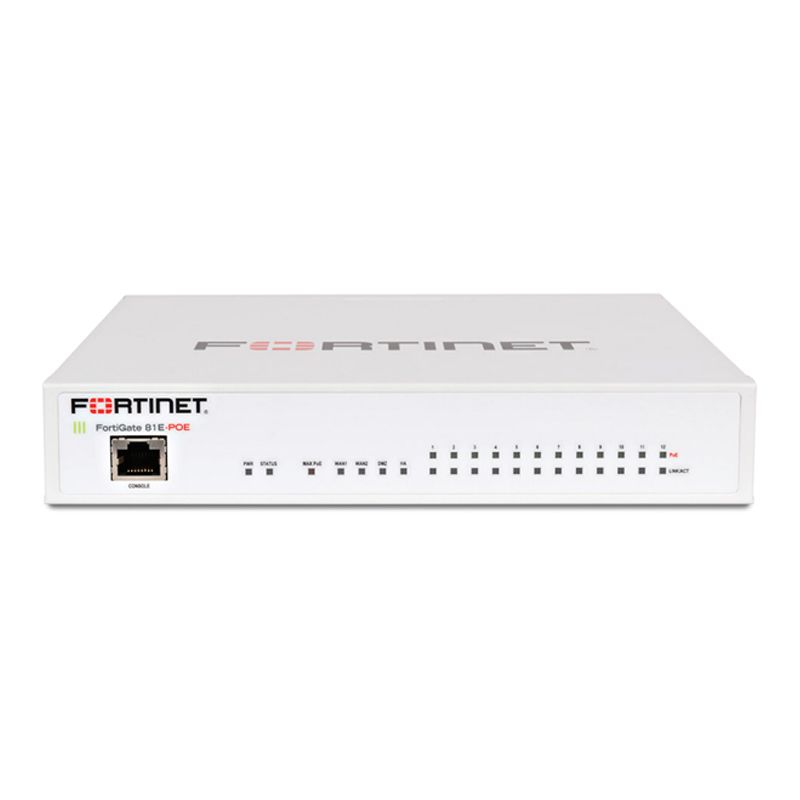

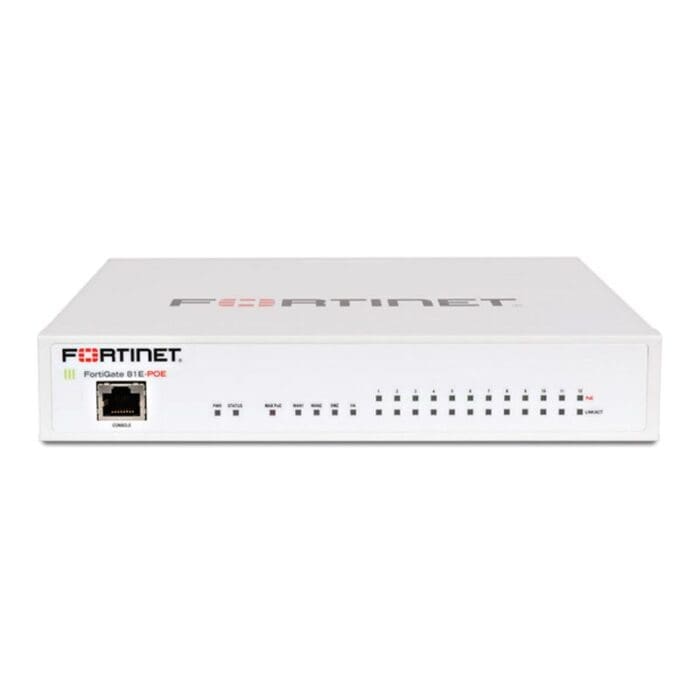

Quick Specs Figure 1 shows the appearance of FG-81E-POE.
Table 1 shows the Quick Specs.
| Type | FORTIGATE 81E-POE |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Ports | – |
| GE RJ45 PoE/+ Ports | 12 |
| GE RJ45 DMZ/HA Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1x 128 GB SSD |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps |
| Firewall Latency (64 byte UDP Packets) | 3 μs |
| Firewall Throughput (Packet per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 1.3 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 2.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 200 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 135 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 135 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 95,000 |
| Application Control Throughput (HTTP 64K) | 900 Mbps |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| IPS Throughput | 450 Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
| Height x Width x Length | 1.65 x 8.5 x 7 inches42 x 216 x 178 mm |
| Form Factor | Desktop |
| Power Required | 100–240V AC, 50–60 Hz |
| Total Available PoE Power Budget | 110W |
| Power Consumption (Average / Maximum) | 20 / 137 W |
| Current (Maximum) | 115V AC / 1.2A, 230V AC / 0.6A |
| Heat Dissipation | 467.5 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 35 dBA |
| Operating Altitude | Up to 16,404 ft (5,000 m) |
| Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
