FIC-2LINE-M-BYPASS
Model: FIC-2LINE-M-BYPASS 0303G06S Huawei USG5500 Unified Security Gateways Interface Card
Details: 2 Link LC/UPC Multimode Optical Interface Bypass Protect Card
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FIC-2LINE-M-BYPASS Overview

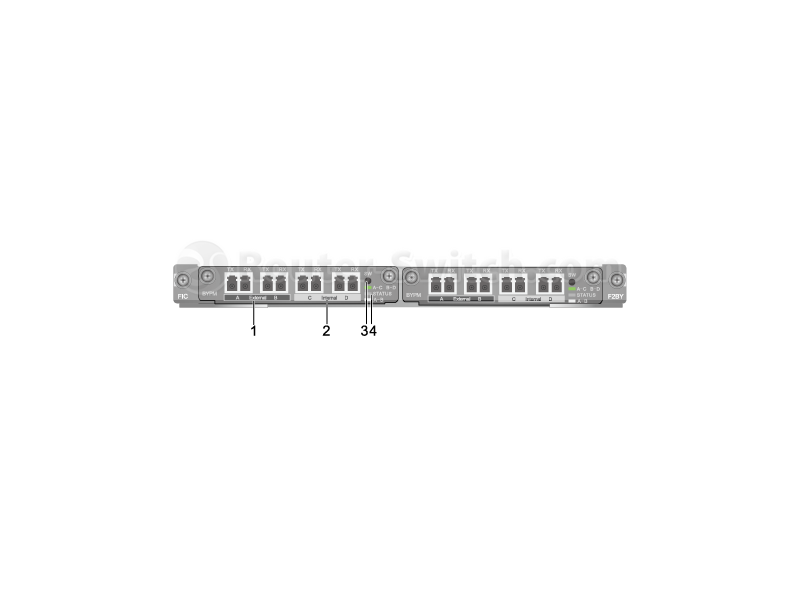

Quick Specs Figure 1 shows the appearance of FIC-2LINE-M-BYPASS.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | FIC-2LINE-M-BYPASS |
| Product Type | Optical Interface Bypass Protect Card |
| Optical Interface | 2 Link LC/UPC Multimode |
| Form Factor | Plug-in module |
| Data Rate | Up to 10 Gbps |
| Wavelength | 850 nm |
| Insertion Loss | Less than 1.5 dB |
| Return Loss | Less than -20 dB |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Fiber Type | Multimode |
| Connector Type | LC/UPC |
| Power Consumption | Less than 2W |
| Dimensions (HxWxD) | 130 mm x 100 mm x 20 mm |
| Compliance | RoHS, CE, FCC |
| MTBF | Greater than 500,000 hours |
| Hot Swappable | Yes |
| EMC Standards | EN55022 Class A, EN55024 |
| Safety Standards | IEC 60950-1 |
