FPR2120-ASA-K9
Model: FPR2120-ASA-K9 – Cisco Firepower 2100 Series Appliances
Details: Cisco Firepower 2120 ASA Appliance. 1U
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FPR2120-ASA-K9 Overview

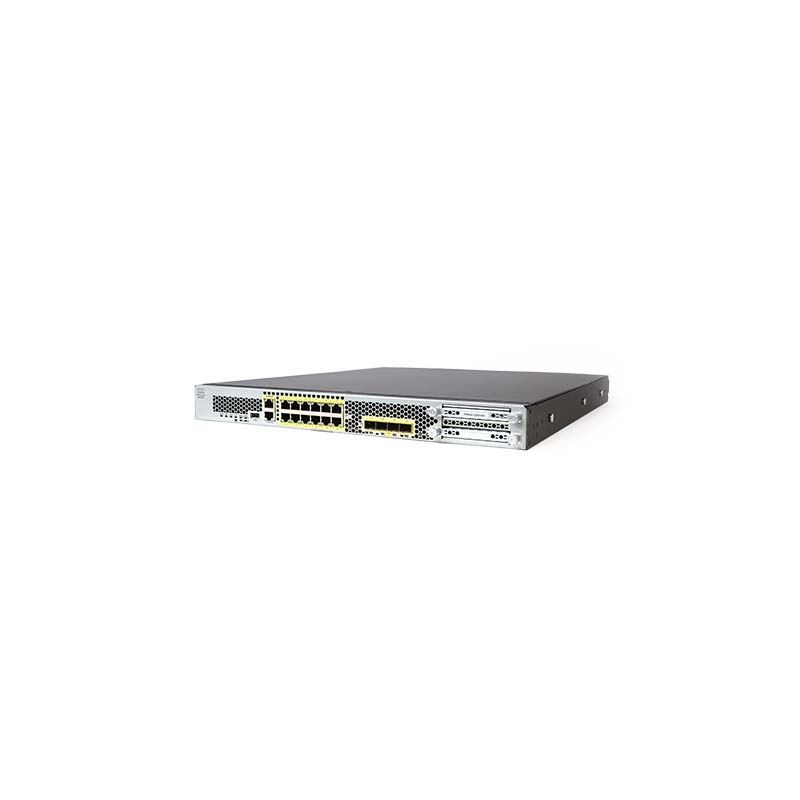

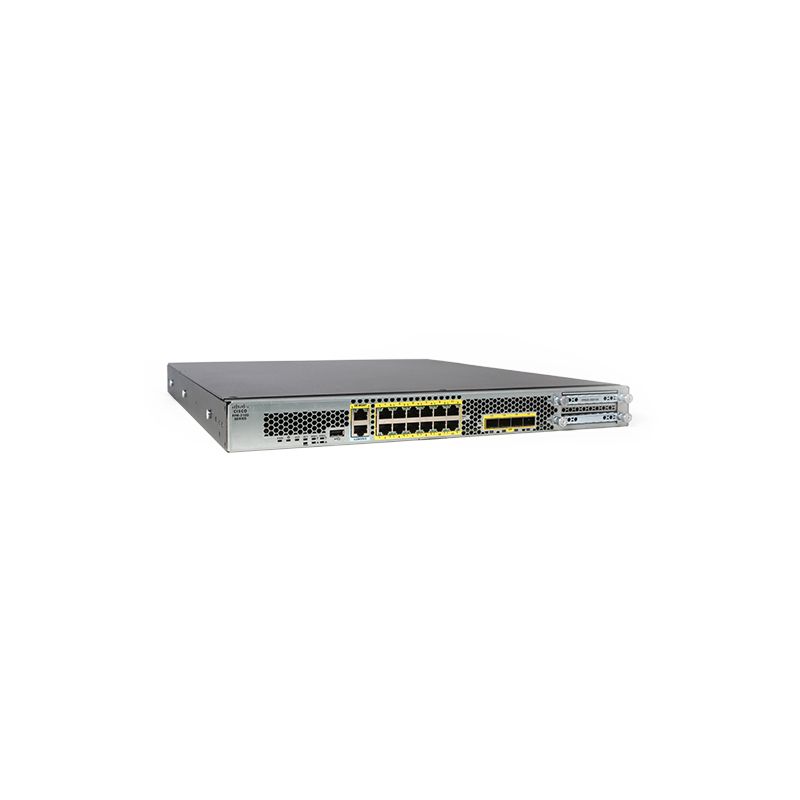

Quick Specs Figure 1 shows the appearance of FPR2120-ASA-K9.
Table 1 shows the Quick Specs.
| Product Number | FPR2120-ASA-K9 |
| Product Description | Cisco Firepower 2120 ASA Appliance, 1RU |
| Stateful inspection firewall throughput | 6Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 3Â Gbps |
| Concurrent firewall connections | 1.5Â million |
| New connections per second | 28000 |
| IPsec VPN throughput (450B UDP L2L test) | 700 Mbps |
| IPsec/Cisco AnyConnect/Apex site-to-site VPN peers | 3500 |
| Maximum number of VLANs | 600 |
| Security contexts (included; maximum) | |
| High availability | Active/active and active/standby |
| Scalability | VPN Load Balancing |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU |
| I/O module slots | 0 |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
| Network modules | None |
| Maximum number of interfaces | Up to 16 total Ethernet ports(12x1GÂ RJ-45, 4x1G SFP) |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 Type-A (500mA) |
| Storage | 1x 100 GB, 1x spare slot (for MSP) |
| Power supplies | Configuration |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | < 2.7A at 100V |
| AC maximum output power | 250W |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >88% at 50% load |
| Redundancy | None |
| Fans | 4 integrated (2 internal, 2 exhaust) fans |
| Noise | 56 dBA @ 25C74 dBA at highest system performance. |
| Rack mountable | Yes. Fixed mount brackets included(2-post). Mount rails optional (4-post EIA-310-D rack) |
| Weight | 16.1 lb (7.3 kg): with 2x SSDs |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | -4 to 149°F (-20 to 65°C) |
| Humidity: operating | 10 to 85% noncondensing |
| Humidity: nonoperating | 5 to 95% noncondensing |
| Altitude: operating | 10,000 ft (max) |
| Altitude: nonoperating | 40,000 ft (max) |
Get more information
Do you have any question about the FPR2120-ASA-K9?
Contact us now via Live Chat or sales@metafinitivetech.com
