-5%
FPR2140-NGFW-K9
Model: FPR2140-NGFW-K9 – Cisco Firepower 2100 Series Appliances
Details: Cisco Firepower 2140 NGFW Appliance. 1U. 1 x NetMod Bay
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FPR2140-NGFW-K9 Overview

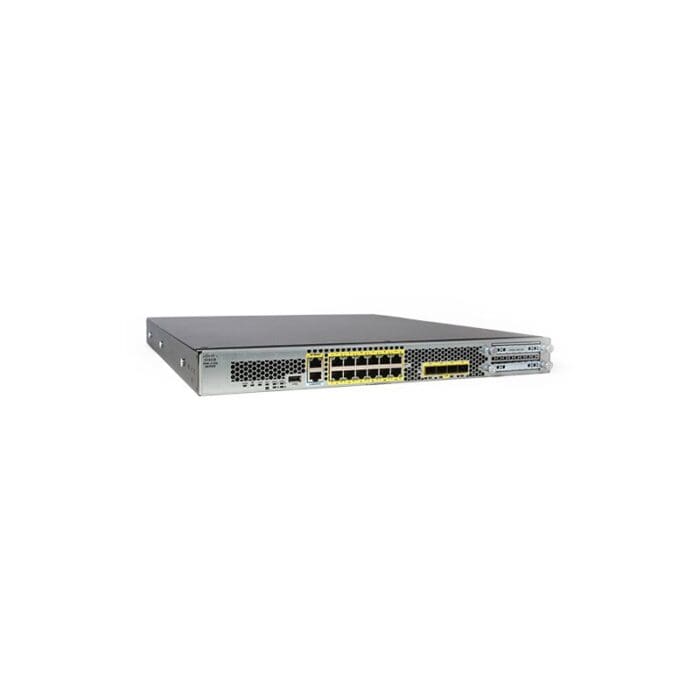

Quick Specs Figure 1 shows the appearance of FPR2140-NGFW-K9.
Table 1 shows the Quick Specs.
| Product Number | FPR2140-NGFW-K9 |
| Product Description | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU |
| I/O module slots | 1 NM slot |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
| Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 Type-A (500mA) |
| Storage | 1x 200 GB, 1x spare slot (for MSP) |
| Power supplies | Configuration |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | < 6A at 100V |
| AC maximum output power | 400W |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >89% at 50% load |
| DC input voltage | -48V to -60VDC |
| DC maximum input current | < 12.5A at -48V |
| DC maximum output power | 350W |
| DC efficiency | >88% at 50% load |
| Redundancy | 1+1 AC or DC with dual supplies |
| Fans | 1 hot-swappable fan module (with 4 fans) |
| Noise | 56 dBA @ 25C77 dBA at highest system performance. |
| Rack mountable | Yes. Mount rails included (4-post EIA-310-D rack) |
| Weight | 21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | -4 to 149°F (-20 to 65°C) |
| Humidity: operating | 10 to 85% noncondensing |
| Humidity: nonoperating | 5 to 95% noncondensing |
| Altitude: operating | 10,000 ft (max) |
| Altitude: nonoperating | 40,000 ft (max) |
Get more information
Do you have any question about the FPR2140-NGFW-K9?
Contact us now via Live Chat or sales@metafinitivetech.com
