FPR4110-NGIPS-K9
Model: FPR4110-NGIPS-K9 – Cisco Firepower 4100 Series Appliances
Details: Cisco Firepower 4110 NGIPS Appliance. 1U. 2 x NetMod Bays
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FPR4110-NGIPS-K9 Overview

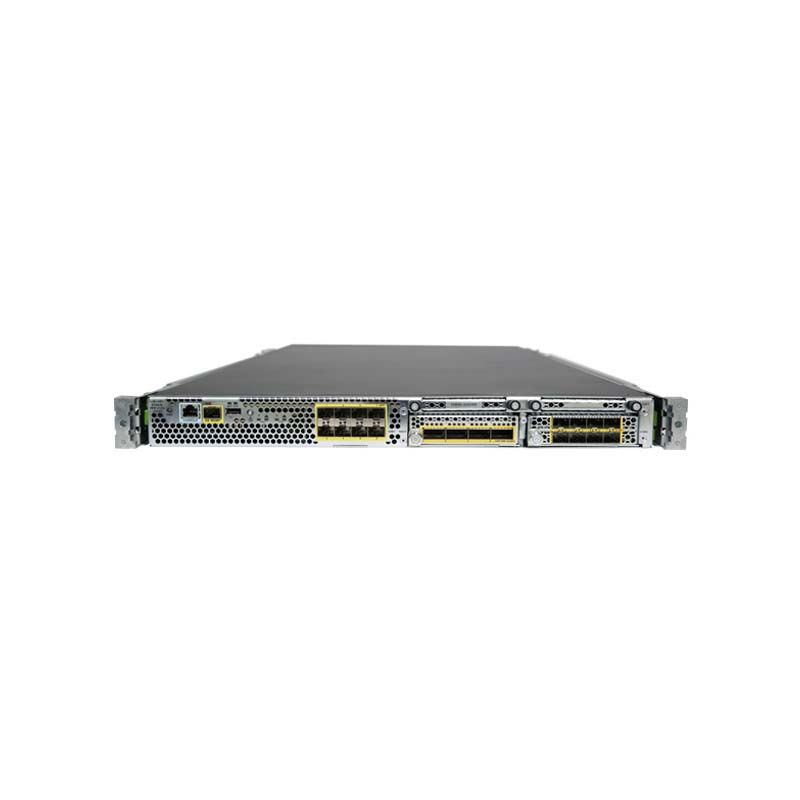

Quick Specs Figure 1 shows the appearance of FPR4110-NGIPS-K9.
Table 1 shows the Quick Specs.
| Product Number | FPR4110-NGIPS-K9 |
| Product Description | Cisco Firepower 4110 NGIPS Appliance. 1U. 2 x NetMod Bays |
| Stateful inspection firewall throughput | 35 Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 15 Gbps |
| Concurrent firewall connections | 10 million |
| Firewall latency (UDP 64B microseconds) | 3.5 |
| New connections per second | 150,000 |
| IPsec VPN throughput (450B UDP L2L test) | 8 Gbps |
| IPsec/Cisco AnyConnect/Apex site-to-site VPN peers | 10,000 |
| Maximum number of VLANs | 1024 |
| Security contexts (included; maximum) | |
| High availability | Active/active and active/standby |
| Clustering | Up to 16 appliances |
| Scalability | VPN Load Balancing, Firewall Clustering |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments |
| Dimensions (H x W x D) | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) |
| Form factor (rack units) | 1RU |
| Security module slots | – |
| I/O module slots | 2 |
| Supervisor | Cisco Firepower 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion |
| Network modules | ●8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules●4 x 40 Gigabit Ethernet Quad SFP+ network modules●8-port 1Gbps copper, FTW (fail to wire) Network ModuleNote: Firepower 4100 Series appliances may also be deployed as dedicated threat sensors, with fail-to-wire network modules. Please contact your Cisco representative for details. |
| Maximum number of interfaces | Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules |
| Integrated network management ports | 1 x Gigabit Ethernet copper port |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 |
| Storage | 200 GB |
| Power supplies | Configuration |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | 13A |
| AC maximum output power | 1100W |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >92% at 50% load |
| DC input voltage | -40V to -60VDC |
| DC maximum input current | 27A |
| DC maximum output power | 950W |
| DC efficiency | >92.5% at 50% load |
| Redundancy | 1+1 |
| Fans | 6 hot-swappable fans |
| Noise | 78 dBA |
| Rack mountable | Yes, mount rails included (4-post EIA-310-D rack) |
| Weight | 36 lb (16 kg): 2 x power supplies, 2 x NMs, 6x fans; 30 lb (13.6 kg): no power supplies, no NMs, no fans |
| Temperature: operating | 32 to 104°F(0 to 40°C) |
| Temperature: nonoperating | -40 to 149°F (-40 to 65°C) |
| Humidity: operating | 5 to 95% noncondensing |
| Humidity: nonoperating | 5 to 95% noncondensing |
| Altitude: operating | 10,000 ft (max) |
| Altitude: nonoperating | 40,000 ft (max) |
