FS-108E-POE
Model: FS-108E-POE – Fortinet FortiSwitch 100 Series
Details: Layer 2 FortiGate switch controller compatible PoE+ switch with 8 x GE RJ45 ports, 2 x GE SFP, Fanless with automatic Max 65W POE output limit
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FS-108E-POE Overview

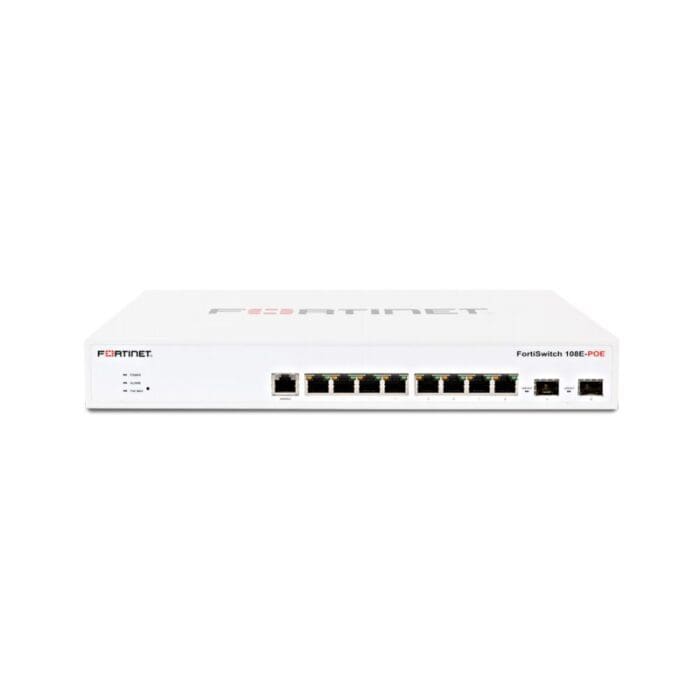

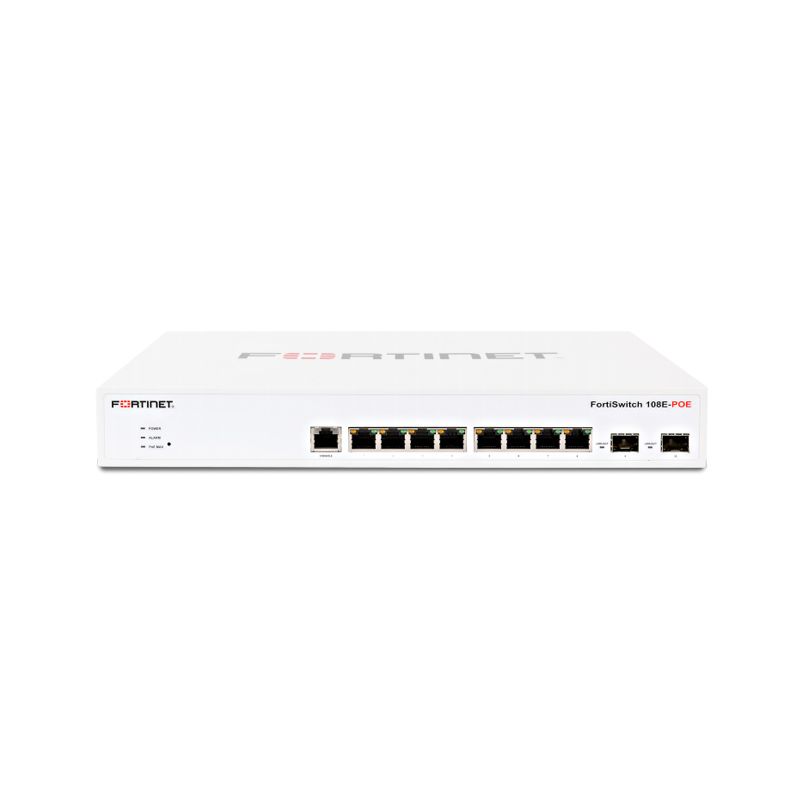

Quick Specs Figure 1 shows the appearance of FS-108E-POE.
Table 1 shows the Quick Specs.
| Device Type | Switch – 8 ports – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 4 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 20 Gbps | Packet forwarding rate: 14.88 Mpps | Latency: 4 µs |
| Capacity | VLANs supported: 4000 | Link aggregation groups: 8 | Total link aggregation groups: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Yes |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Authentication Method | RADIUS |
| Features | Flow control, auto-negotiation, port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, STP Root Guard, fanless, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), 512KB packet buffer, 802.1x authentication, Storm Control, Back Pressure Support, Link Aggregation, Management Information Base (MIB) II, Guest VLAN, STP BPDU Guard, IPv6 management, VLAN Tagging, FortiLink Mode, MAC Access Bypass (MAB), Telnet server |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Power, alarm, link/activity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ | 2 x Gigabit LAN SFP | 1 x console RJ-45 management | 4 x 1000Base-T RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational | 5.19 Watt |
| MTBF | >10 years |
| Width | 13 in |
| Depth | 8.2 in |
| Height | 1.7 in |
| Service & Support | Limited warranty – lifetime |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
