-5%
FWF-60E
Model: FWF-60E – Fortinet NGFW Entry-level Series
Details: Fortinet FWF-60E, 10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), Wireless (802.11a/b/g/n/ac). Max managed FortiAPs (Total / Tunnel) 10 / 5
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FWF-60E Overview

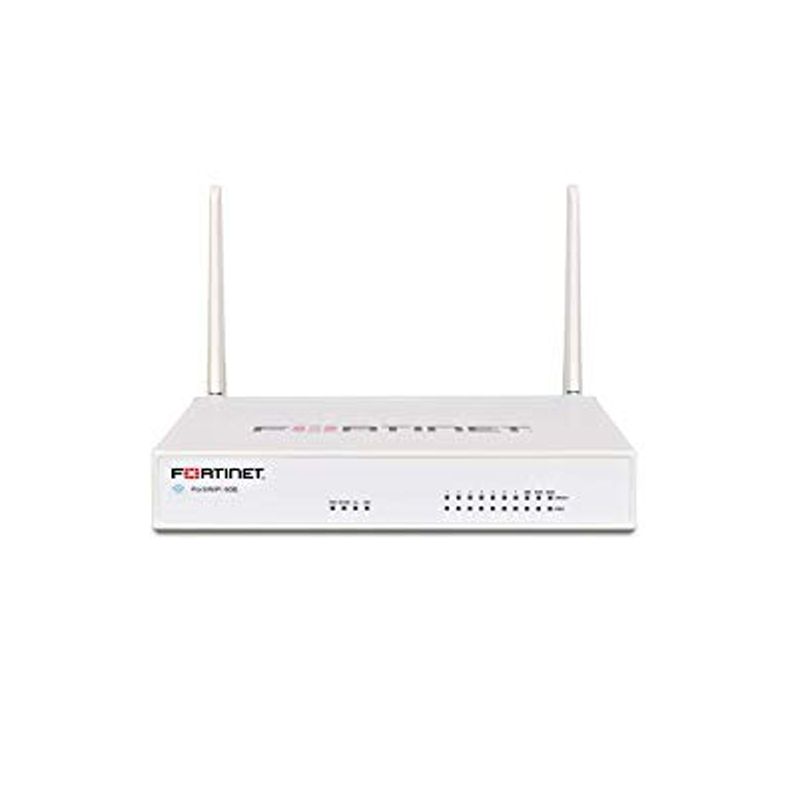

Quick Specs Figure 1 shows the appearance of FWF-60E.
Table 1 shows the Quick Specs.
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3 / 3 / 3 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 4.5 Mpps |
| Concurrent Sessions (TCP) | 1.3 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte packets) | 2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 150 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 100 |
| IPS Throughput (HTTP / Enterprise Mix)1 | 1,400 / 350 Mbps |
| SSL Inspection Throughput2 | 340 Mbps |
| Application Control Throughput3 | 550 Mbps |
| NGFW Throughput4 | 250 Mbps |
| Threat Protection Throughput5 | 180 Mbps |
| CAPWAP Throughput6 | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 |
| Maximum Number of FortiTokens | 100 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38 x 216 x 160 |
| Power Required | 100–240V AC, 50–60 Hz |
| Maximum Current | 110 V / 1.5 A, 220 V / 0.75 A |
| Power Consumption (Average / Maximum) | 11.7 / 14 W |
| Heat Dissipation | 40 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
