FWFDMF1CE100
Model: FWFDMF1CE100 0302G042 Huawei USG5120 Unified Security Gateways Interface Card
Details: 1-PORT CE1 Interface Board,with HW General Security Platform Software
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FWFDMF1CE100 Overview

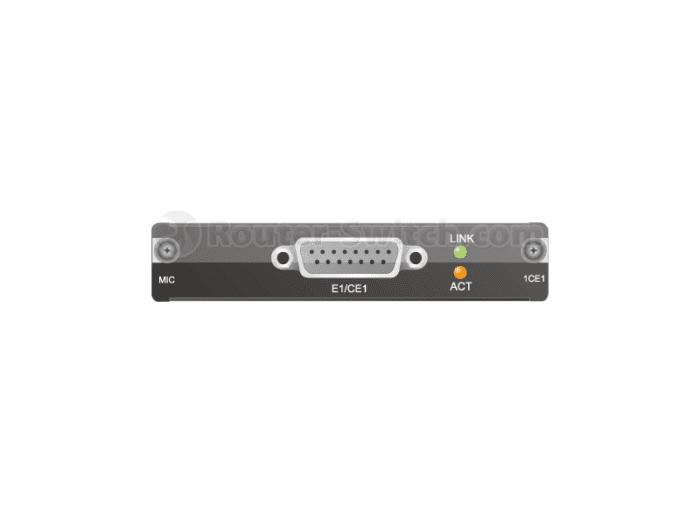

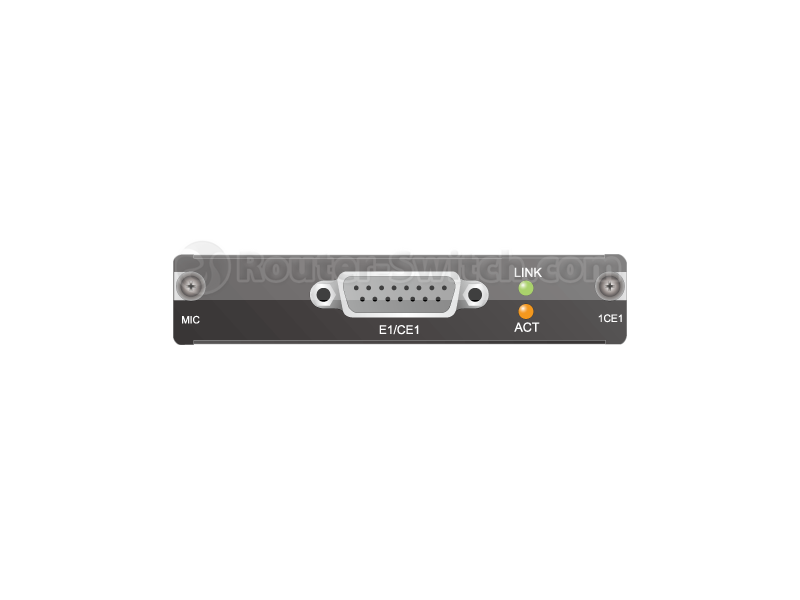

Quick Specs Figure 1 shows the appearance of FWFDMF1CE100.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | FWFDMF1CE100 |
| Interface Type | 1-PORT CE1 |
| Software Included | HW General Security Platform Software |
| Port Speed | 2.048 Mbps |
| Form Factor | Plug-in module |
| Compatible Racks | Huawei NE Series |
| Dimensions | 23.5 mm x 88.0 mm x 235.0 mm |
| Power Consumption | 5.6 W |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Warranty | 1 Year |
| Compliance | RoHS, CE |
| MTBF | 300,000 hours |
| Management Interface | CLI, SNMP |
| Indicators | Power, Link, Alarm |
| Protocols Supported | ITU-T G.703, G.704, G.706, G.732, G.8040 |
| Latency | <1 ms |
| Security Features | Access Control Lists (ACLs), Secure Boot, Software Image Signing |
| Power Supply | -48 V DC |
