-5%
FWGD0FF2E101
Model: FWGD0FF2E101 0302G023 Huawei USG5150 Unified Security Gateways Interface Card
Details: 2-port E1&Fractional E1 Interface Card
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FWGD0FF2E101 Overview

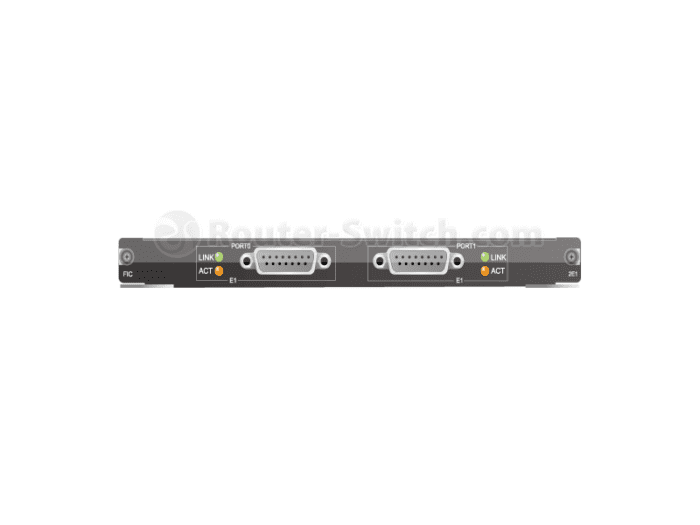

Quick Specs Figure 1 shows the appearance of FWGD0FF2E101.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | FWGD0FF2E101 |
| Type | Interface Card |
| Port Count | 2 ports |
| Port Type | E1 & Fractional E1 |
| Compatibility | Huawei Devices |
| Data Rate | 2 Mbps per E1 port |
| Interface Standard | ITU-T G.703 |
| Framing | Unframed and Framed (G.704) |
| Line Encoding | HDB3 (High-Density Bipolar of Order 3) |
| Bit Error Rate (BER) | 10?12 or better |
| Power Supply | 3.3V DC |
| Power Consumption | 3.5W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (non-condensing) |
| MTBF | Greater than 100,000 hours |
| Dimensions (WxDxH) | 120mm x 140mm x 20mm |
| Regulatory Compliance | CE, RoHS |
| Warranty | 1 Year |
