GLC-SX-MM-RGD
Model: GLC-SX-MM-RGD Cisco SFP
Details: Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP
Condition: Original New
Warranty: 3 Years Warranty.
Description
GLC-SX-MM-RGD Overview

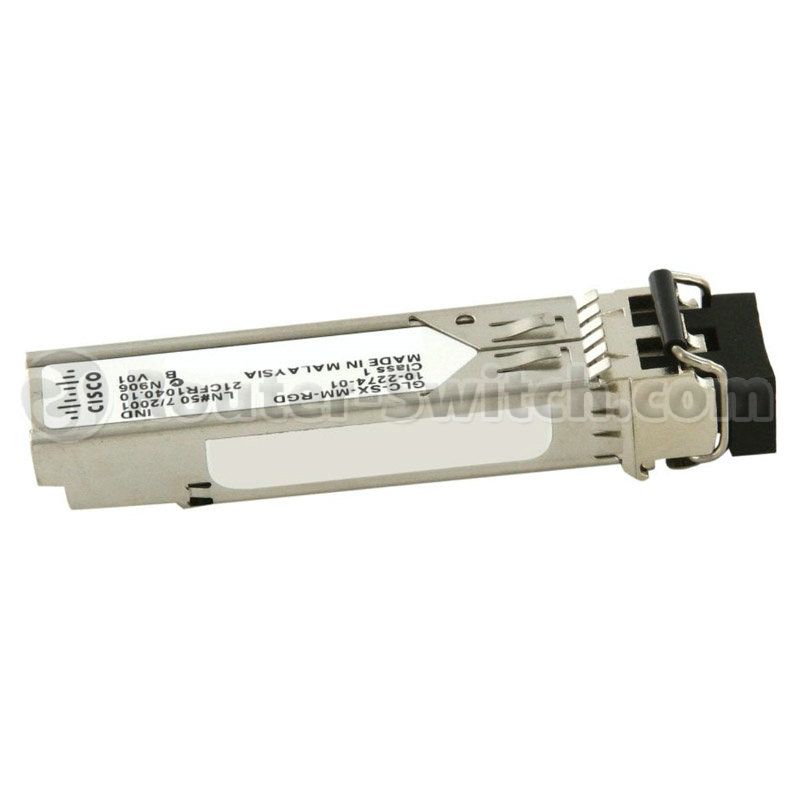

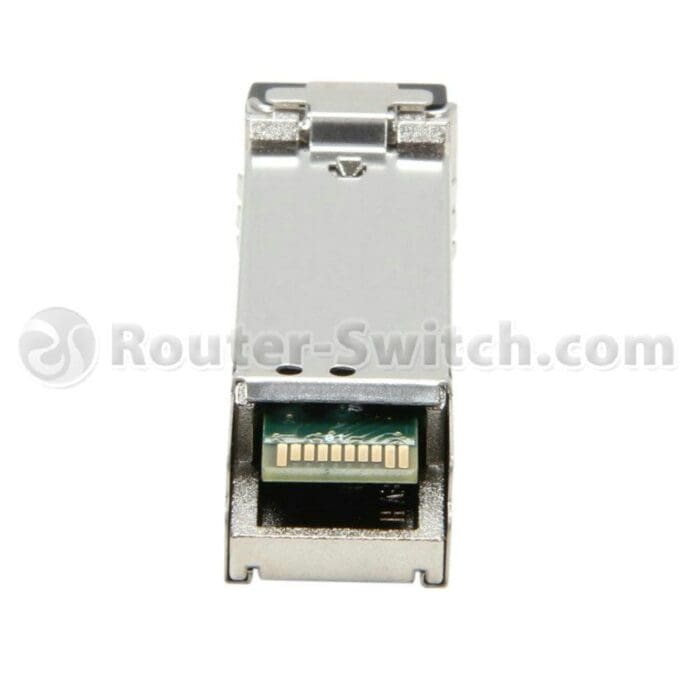

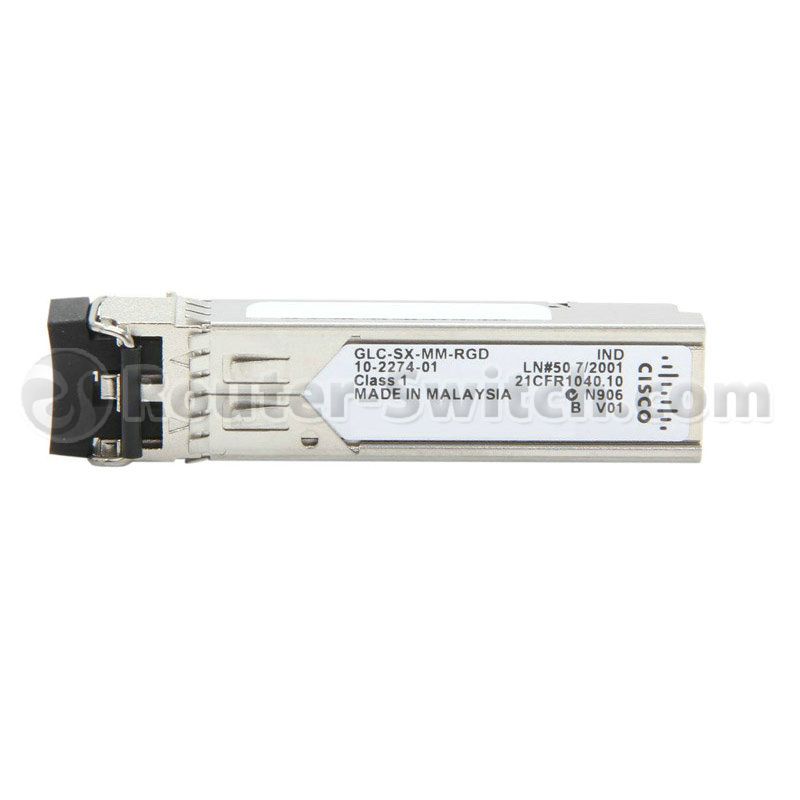

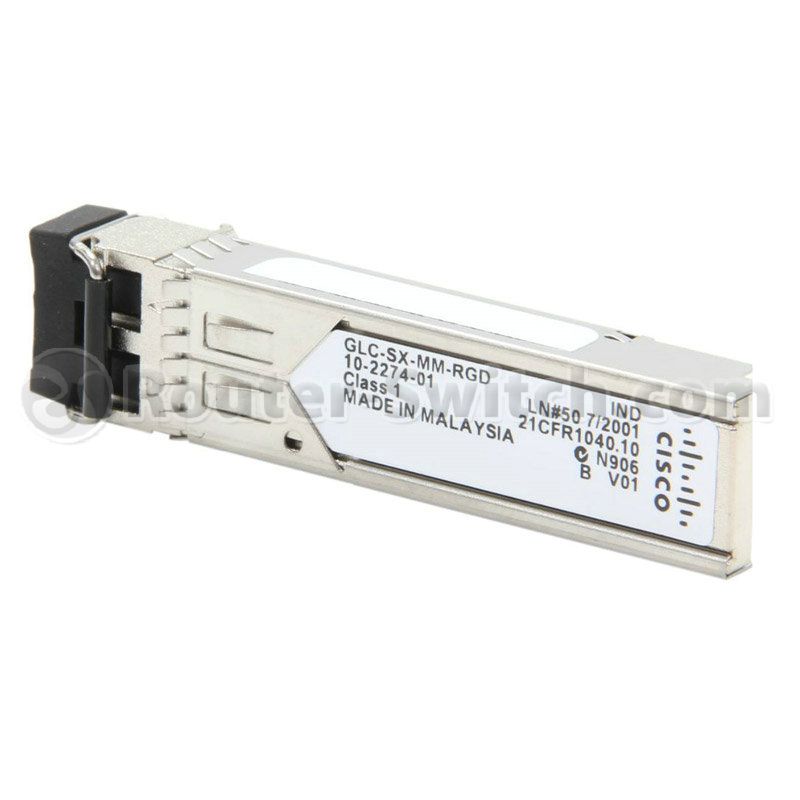

Quick Specs Figure 1 shows the appearance of GLC-SX-MM-RGD.
Table 1 shows the Quick Specs.
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Interfaces | 1 x Ethernet 1000Base-SX – LC/PC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.4 in |
| Weight | 2.65 oz |
| Service & Support | Limited warranty – 90 days |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Designed For | Cisco 2010, 2010 Connected Grid, 2520 Connected Grid Switch, 3270 Rugged Integrated Services Router Bundle, 3270 Rugged Integrated Services Router Card, 3270 Rugged ISR Card ¦ Cisco Aironet 1522AG Lightweight Outdoor Mesh Access Point ¦ Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S ¦ Cisco Industrial Ethernet 3000 Series, 3010 Series ¦ Cisco MWR 2941-DC, 2941-DC-A |
Get more information
Do you have any question about the GLC-SX-MM-RGD?
Contact us now via Live Chat or sales@metafinitivetech.com
