H3C S6520-24S-SI
Model: H3C S6520-24S-SI – H3C Switches
Details: H3C S6520-SI S6520-24S-SI series of new generation 10G multi-rate switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
H3C S6520-24S-SI Overview

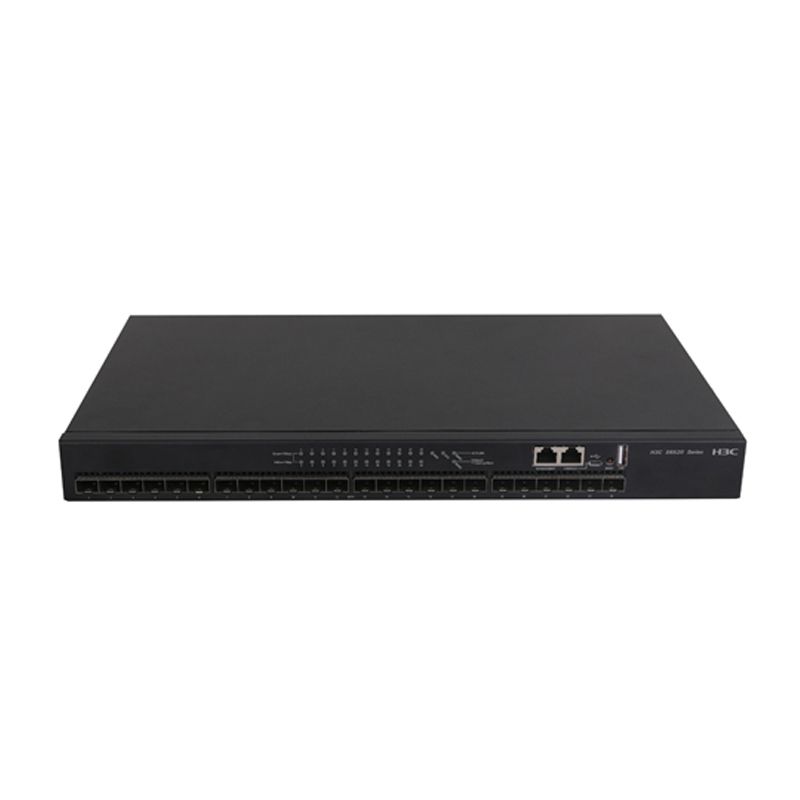

Quick Specs Figure 1 shows the appearance of H3C S6520-24S-SI.
Table 1 shows the Quick Specs.
| Product Series | H3C S6520-SI |
| Model | S6520-24S-SI |
| Type | 10G Multi-rate Switch |
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 357.14 Mpps |
| Ports | 24 x 10GbE SFP+ ports |
| Expansion Slots | 4 x Interface Module Slots |
| MAC Address Table | 128K |
| Packet Buffer Memory | 2MB |
| IPv4 Routes | Up to 64K |
| IPv6 Routes | Up to 32K |
| VLAN Support | Up to 4094 VLANs |
| Quality of Service (QoS) | Advanced QoS features |
| Layer 3 Features | Static Routing, RIP, OSPF, BGP, IS-IS |
| Security Features | ACL, RADIUS, TACACS+, IEEE 802.1X, SSH, SSL |
| Management | Web-based management, SNMP v1/v2c/v3, RMON |
| Redundancy Protocols | IRF, VRRP |
| Power Supply | Dual power slots, power supplies sold separately |
| Dimensions (WxDxH) | 440 x 420 x 44 mm |
| Operating Temperature | 0��C to 50��C |
| Storage Temperature | -40��C to 70��C |
| Operating Humidity | 10% to 90%, non-condensing |
| Compliance | CE, FCC, RoHS |
