HAC-EBW3802
Model: HAC-EBW3802 – Dahua 8MP CVI
Details: 8MP HDCVI IR-Fisheye Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-EBW3802 Overview

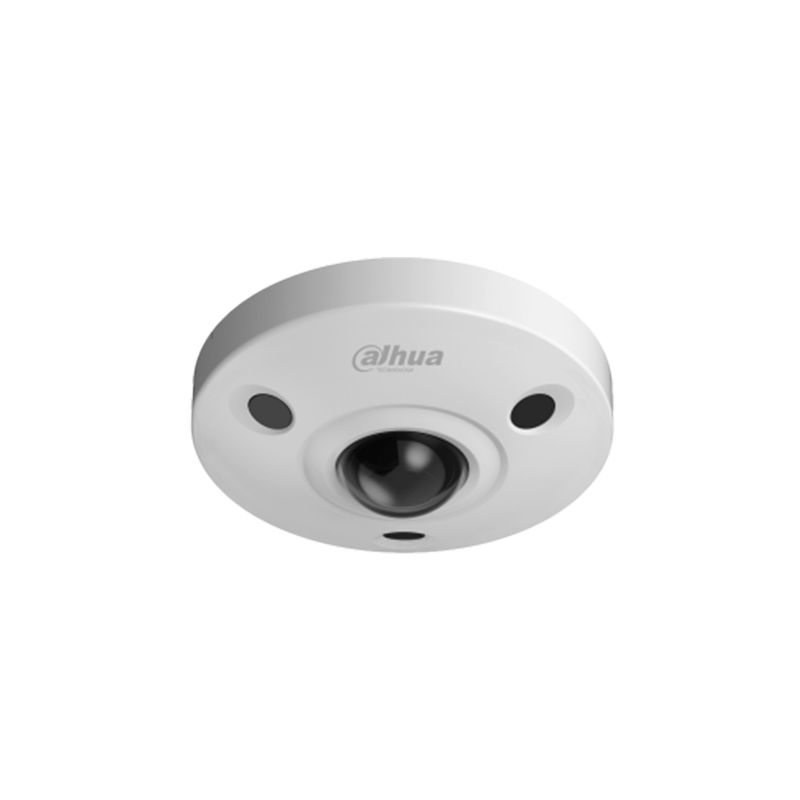

Quick Specs Figure 1 shows the appearance of HAC-EBW3802.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″ 8MP CMOS |
| Effective Pixels | 3840(H)×2160(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL:1/4s~1/100,000sNTSC:1/3s~1/100,000s |
| Minimum Illumination | 0.005Lux/F2.0 (Color), 30IRE,0lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | 15m |
| IR On/Off Control | Auto (ICR)/Color/B/W |
| IR LEDs | 3 |
| Audio | Built-in mic |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.5mm |
| Max Aperture | F2.0 |
| Angle of View | H: 180°,V:100° |
| Focus Control | N/A |
| Close Focus Distance | 0.6m(23.6”) |
| Detect | 25px/m(8px/ft) |
| Observe | 63px/m(19px/ft) |
| Recognize | 125px/m(38px/ft) |
| Identify | 250ppm(76px/ft) |
| Pan/Tilt/Rotation | Pan: NATilt: NARotation: NA |
| Resolution | 8MP (3840×2160)/4M(2560×1440) |
| Frame Rate | PAL:3840×2160@12.5fps,2560×1440@25fps;NTSC:3840×2160@15fps,2560×1440@30fps; |
| Video Output | 1-channel HDCVI 4K video output & 1-channel CVBS video output |
| Day/Night | Auto (Electronic) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D/3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Alarm I/O | 2/1 |
| Power Supply | DC12V ±25% |
| Power Consumption | 7.4W (IR ON) |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH* Start up should be done at above -30°C (-22°F) |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67&IK10 |
| Casing | Aluminium |
| Dimensions | Φ149.8mm x 47.7mm(Φ5.9″x 1,88″) |
