HAC-HDBW1200F-M
Model: HAC-HDBW1200F-M – Dahua 2MP CVI
Details: 2MP Mobile HDCVI IR Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDBW1200F-M Overview

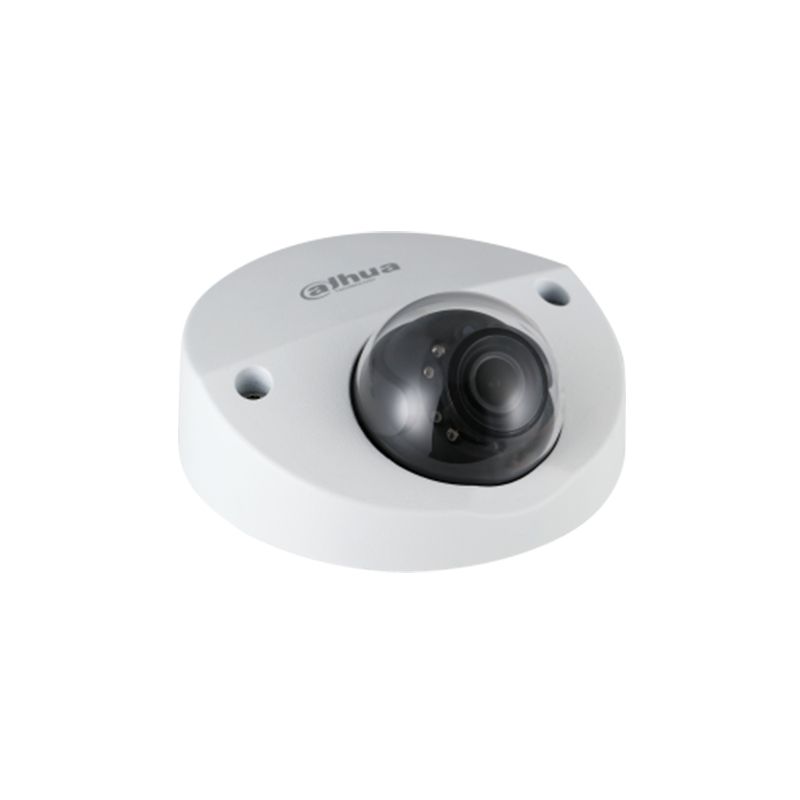

Quick Specs Figure 1 shows the appearance of HAC-HDBW1200F-M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDBW1200F-M |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H)��1080(V), 2MP |
| Scanning System | Progressive |
| Minimum Illumination | 0.01Lux/F2.0, 30IRE, 0Lux IR on |
| IR Distance | Up to 20m (66 feet) |
| IR On/Off Control | Auto / Manual |
| Day/Night | Auto (ICR) / Manual |
| Lens | 2.8mm fixed lens |
| Video Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch) |
| Max Aperture | F2.0 |
| Angle of View | 97�� |
| Pan / Tilt / Rotation | Pan: 0��~355��; Tilt: 0��~60��; Rotation: 0��~355�� |
| Power Supply | 12V DC ��25% |
| Power Consumption | Max 3.6W (12V DC, IR on) |
| Operating Conditions | -40��C ~ +60��C (-40��F ~ +140��F) / Less than 95% RH (non-condensation) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
