-5%
HAC-HDBW2601R-Z
Model: HAC-HDBW2601R-Z – Dahua 6MP CVI
Details: 6MP WDR HDCVI IR Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDBW2601R-Z Overview

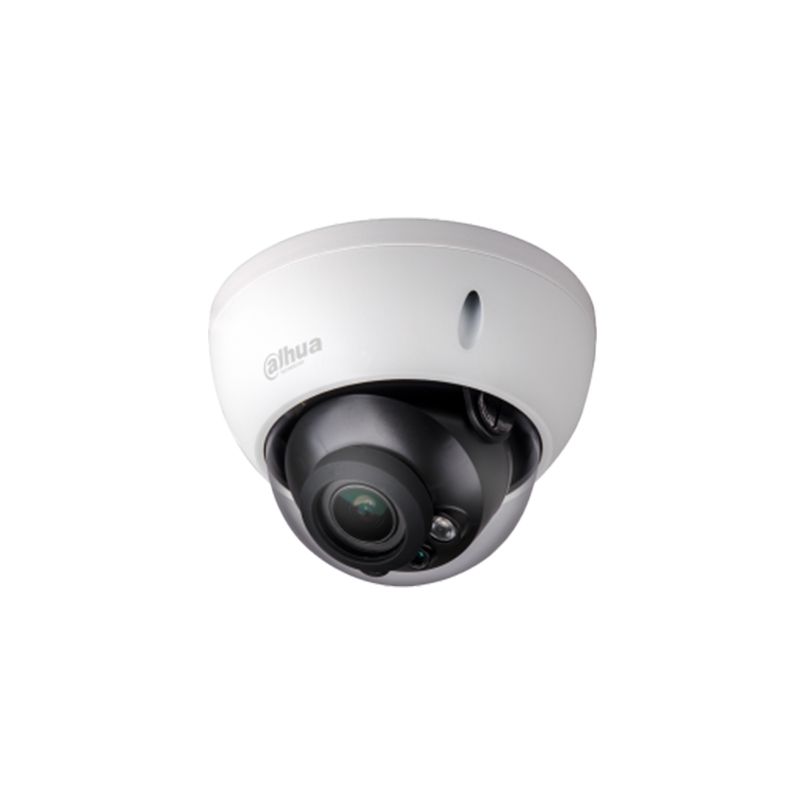

Quick Specs Figure 1 shows the appearance of HAC-HDBW2601R-Z.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDBW2601R-Z |
| Image Sensor | 1/2.9″ CMOS |
| Effective Pixels | 6MP (3072??2048) |
| Electronic Shutter Speed | 1/3s to 1/100,000s |
| Min. Illumination | 0.03Lux/F1.6 (Color), 0Lux/F1.6 (IR on) |
| IR Distance | Up to 30m |
| Day/Night | Auto (ICR) / Manual |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7mm?C13.5mm |
| Angle of View | 100??-31?? |
| Video Frame Rate | 4K@15fps; 5MP@20fps; 4MP/1080P/720P@25/30fps |
| Video Output | 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch) |
| OSD Menu | Multi-language |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Smart IR | Yes |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | DC12V??25% |
| Power Consumption | Max. 11.2W |
| Operating Conditions | -30??C~+60??C (-22??F~+140??F) / Less than 95% RH |
