HAC-HDW1220G-M
HAC-HDW1220G-M $0.00
Back to products
CSS7136S-ERD
CSS7136S-ERD $0.00

HAC-HDW1100G-M

$0.00

Model: HAC-HDW1100G-M – Dahua Mobile
Details: Dahua 1MP Mobile HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: HAC-HDW1100G-M Categories: , ,
Description

HAC-HDW1100G-M Overview

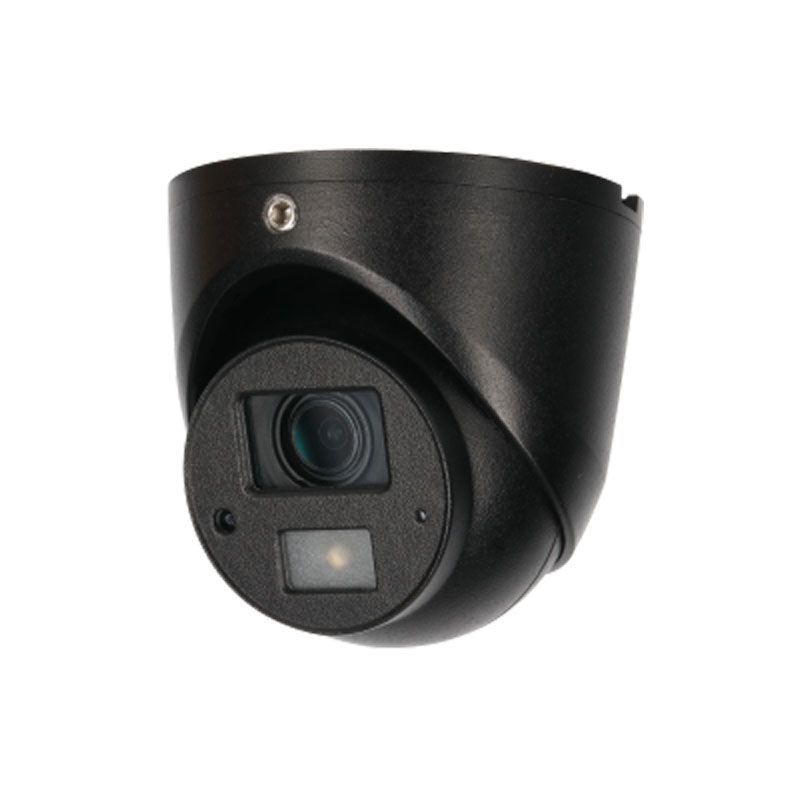

Quick Specs Figure 1 shows the appearance of HAC-HDW1100G-M.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ CMOS
Effective Pixels 1280(H)Ă—720(V), 1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F2.0
Angle of View H: 72.3° (91.6°)
Focus Control N/A
Close Focus Distance 500mm (400mm)19.69” (15.75”)
Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 80°Rotation: 0° ~ 360°
Resolution 720P (1280Ă—720)
Frame Rate 25/30fps@720P
Video Output 1-channel BNC HDCVI high definition video output (Aviation connector)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)EN50155 (EN50121-3-2, IEC61373)
Audio Interface Built-in Mic
Aviation Connector Interface 1-power2-video ground3-power ground4-video
Power Supply 12V DC ±25%
Power Consumption Max 2.3W (12V DC, IR on)
Operating Conditions -40°C ~ +80°C (-40°F ~ +176°F) / Less than 95% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +80°C (-40°F ~ +176°F) / Less than 95% RH
Ingress Protection &Vandal Resistance IP67
Casing Aluminium
Dimensions Φ62mmĂ—62mm (Φ2.44″Ă—2.44″)
Net Weight 0.16kg (0.35lb)
Gross Weight 0.23kg (0.51lb)
Detect 25px/m(8px/ft)
Observe 63px/m(19px/ft)
Recognize 125px/m(38px/ft)
Identify 250px/m(76px/ft)
