-5%
HAC-HDW1230SL
Model: HAC-HDW1230SL – Dahua 2MP CVI
Details: 2MP Starlight HDCVI IR Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HDW1230SL Overview

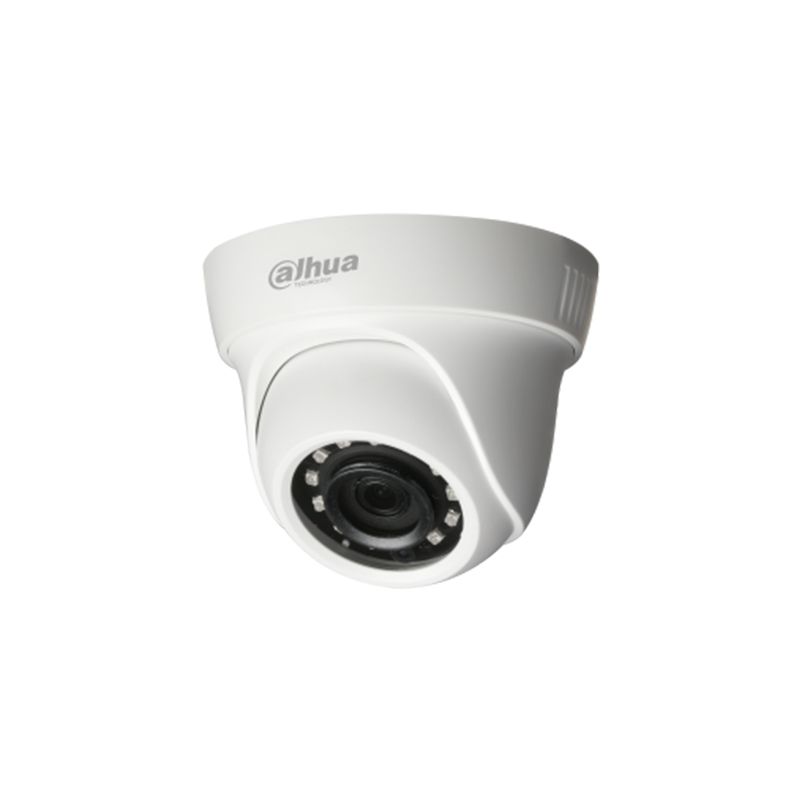

Quick Specs Figure 1 shows the appearance of HAC-HDW1230SL.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDW1230SL |
| Camera Type | Eyeball Camera |
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 1920(H) �� 1080(V), 2MP |
| Resolution | 1080P (1920��1080) |
| Signal System | PAL/NTSC |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Min. Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
| IR Distance | Up to 30m (98ft) |
| IR LEDs | 1 |
| Lens Type | Fixed |
| Lens Mount | M12 |
| Focal Length | 3.6mm (2.8mm optional) |
| Max Aperture | F1.6 |
| Angle of View | 87.5�� |
| Day/Night | Auto(ICR) / Color / B/W |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel CVBS video output (Can switch) |
| Power Supply | 12V DC ��30% |
| Power Consumption | Max 4.9W (12V DC, IR on) |
| Operating Temperature | -40��C to +60��C (-40��F to +140��F) |
| Storage Temperature | -40��C to +60��C (-40��F to +140��F) |
| Ingress Protection | IP67 |
