HAC-HDW1509T-A-LED
Model: HAC-HDW1509T-A-LED – Dahua 5MP CVI
Details: Dahua 5MP Full-color Starlight HDCVI Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HDW1509T-A-LED Overview

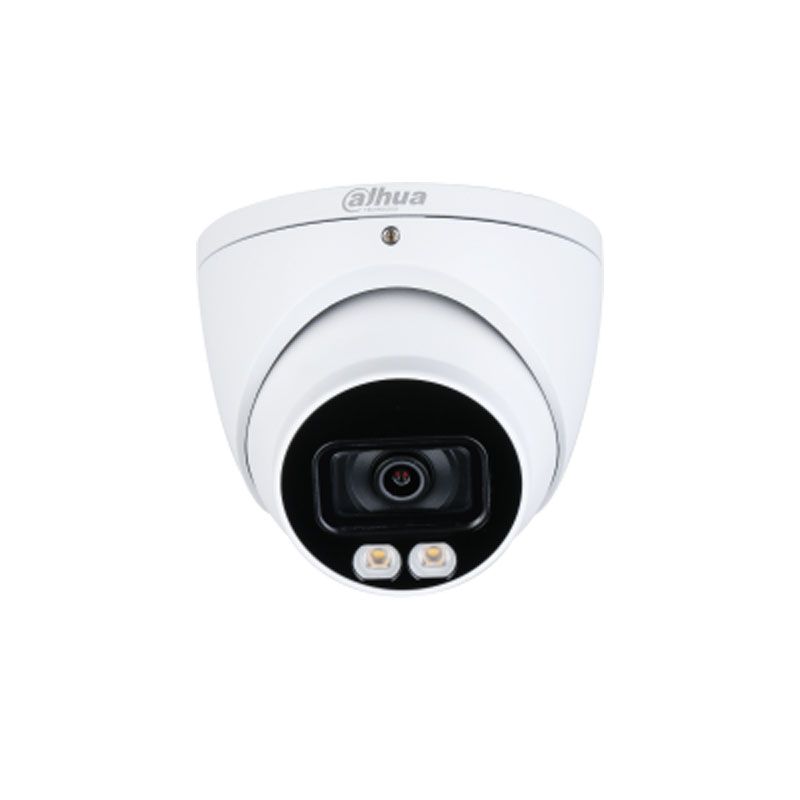

Quick Specs Figure 1 shows the appearance of HAC-HDW1509T-A-LED.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-HDW1509T-A-LED |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2880(H)??1620(V), 5 MP |
| Scanning System | Progressive |
| Minimum Illumination | 0.005 Lux/F1.0, 30IRE, 0 Lux with LED on |
| Electronic Shutter Speed | PAL: 1/25s?C1/100000s, NTSC: 1/30s?C1/100000s |
| LED | 1 White Light LED |
| LED Distance | 20 m (65.6 ft) |
| Day/Night | Full-color |
| Video Frame Rate | 5M@25fps; 4M@30fps/25fps; 1080P@30fps/25fps |
| Lens | 3.6mm fixed lens (2.8mm, 6mm optional) |
| Lens Mount | M12 |
| Field of View | 89?? (3.6mm), 106.0?? (2.8mm), 54.7?? (6mm) |
| S/N Ratio | More than 65 dB |
| Audio Interface | Built-in mic |
| Video Output | 1-channel BNC HDCVI high definition video output / CVBS video output (can switch) |
| OSD Menu | Multi-language |
| Power Supply | 12V DC ??30% |
| Power Consumption | Max. 4.7W (12V DC, LED on) |
| Dimensions | ??122mm??104mm |
