HAC-HDW1509T-LED
Model: HAC-HDW1509T-LED – Dahua 5MP CVI
Details: Dahua 5MP Full-color Starlight HDCVI Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HAC-HDW1509T-LED Overview

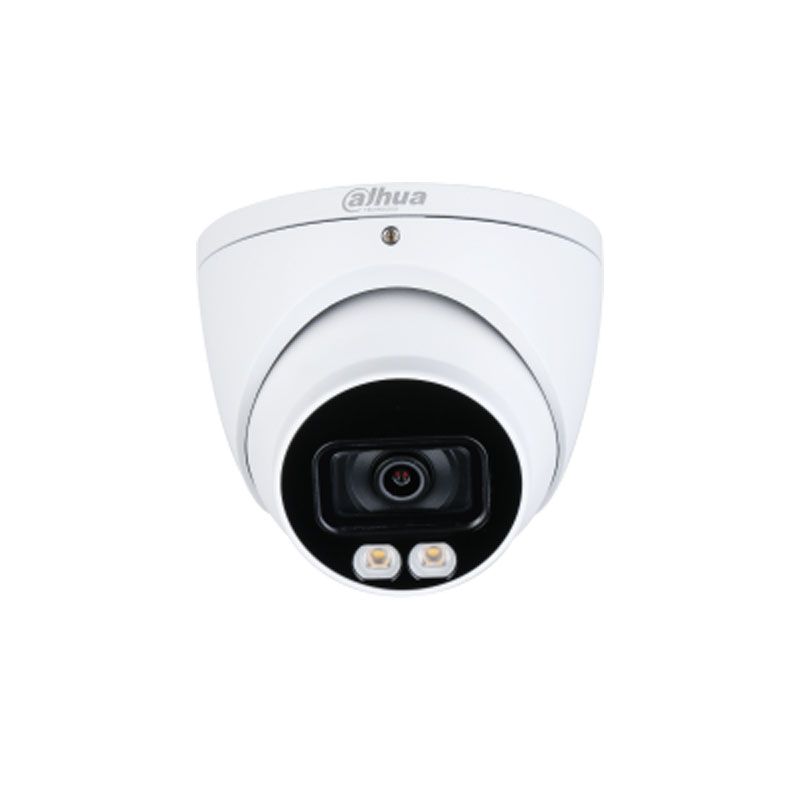

Quick Specs Figure 1 shows the appearance of HAC-HDW1509T-LED.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Camera Type | Full-color Starlight HDCVI Eyeball Camera |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2592 (H) ?? 1944 (V), 5 MP |
| Electronic Shutter Speed | 1/3s to 1/100,000s |
| Minimum Illumination | 0.001 Lux/F1.0, 30IRE, 0 Lux LED on |
| LED Distance | Up to 40 m (131 ft) |
| Lens Type | Fixed lens / Fixed iris |
| Focal Length | 2.8 mm; 3.6 mm optional |
| Field of View | 2.8 mm: 101?? ?? 67?? ?? 83?? (diagonal, horizontal, vertical) |
| Day/Night | Color |
| OSD Menu | Multi-language |
| Video Frame Rate | 20 fps @ 5MP, 25/30 fps @ 4MP, 1080P |
| Video Output | 1-channel BNC high definition video output, CVI/CVBS switchable |
| Power Supply | 12V DC ??30% |
| Power Consumption | Max 6.2W (12V DC, LED on) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40??C to +60??C (-40??F to +140??F) |
| Dimensions | 122 mm ?? 112.9 mm (4.8″ ?? 4.4″) |
| Net Weight | 0.63 kg (1.39 lb) |
