HAC-HFW2402T-Z-A
Model: HAC-HFW2402T-Z-A – Dahua 4MP CVI
Details: 4MP Starlight+ HDCVI IR Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-HFW2402T-Z-A Overview

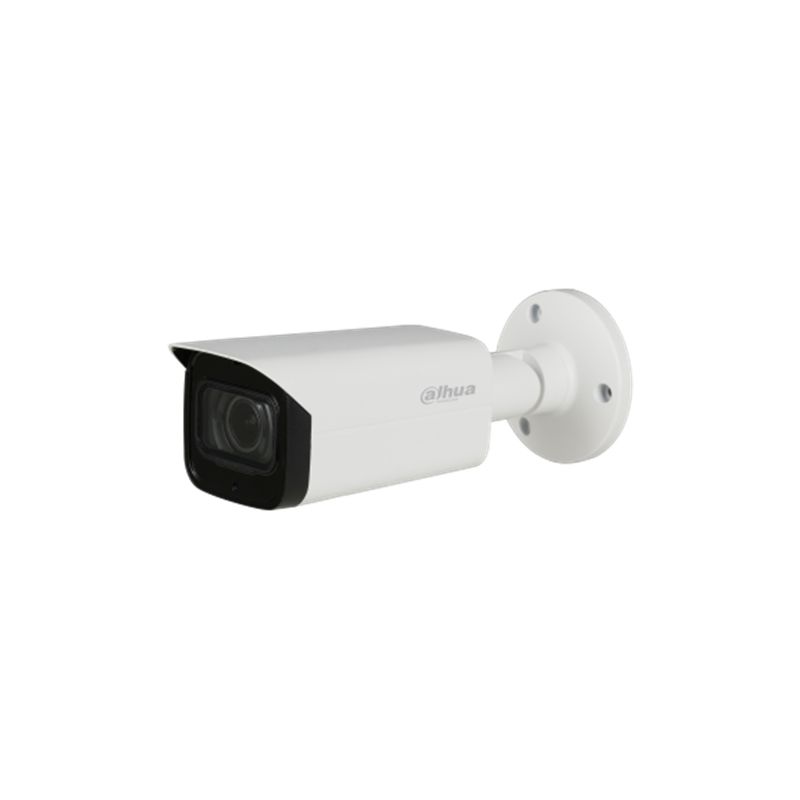

Quick Specs Figure 1 shows the appearance of HAC-HFW2402T-Z-A.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″ CMOS |
| Effective Pixels | 2592(H)x1440(V), 4MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s~1/100,000sNTSC: 1/30s~1/100,000s |
| Minimum Illumination | 0.002Lux/F1.9, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 80m (262feet) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens Type | Motorized lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.7-11mm |
| Max Aperture | F1.9 |
| Angle of View | H: 114.3°~47.2°V: 61.7°~26.8° |
| Focus Control | Auto / Manual |
| Close Focus Distance | 1500mm59.06″ |
| Wide | Tele |
| Detect | 25px/m (8px/ft) |
| Observe | 63px/m (19px/ft) |
| Recognize | 125px/m (38px/ft) |
| Identify | 250px/m (76px/ft) |
| Pan/Tilt/Rotation | Pan: 0°~ 360°Tilt: 0°~ 90°Rotation: 0°~ 360° |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | 1ch in & Built-in Mic |
| Power Supply | 12V DC±30% |
| Power Consumption | Max. 10.8W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH* Start up should be done at above -30°C (-22°F) |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & VandalResistance | IP67 |
| Casing | Aluminium |
| Dimensions | 244.1mm x 90.4mm x 90.4mm (9.61″ x 3.56″ x 3.56″) |
