HAC-PFW3601-A180
Model: HAC-PFW3601-A180 – Dahua 2MP CVI
Details: 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HAC-PFW3601-A180 Overview

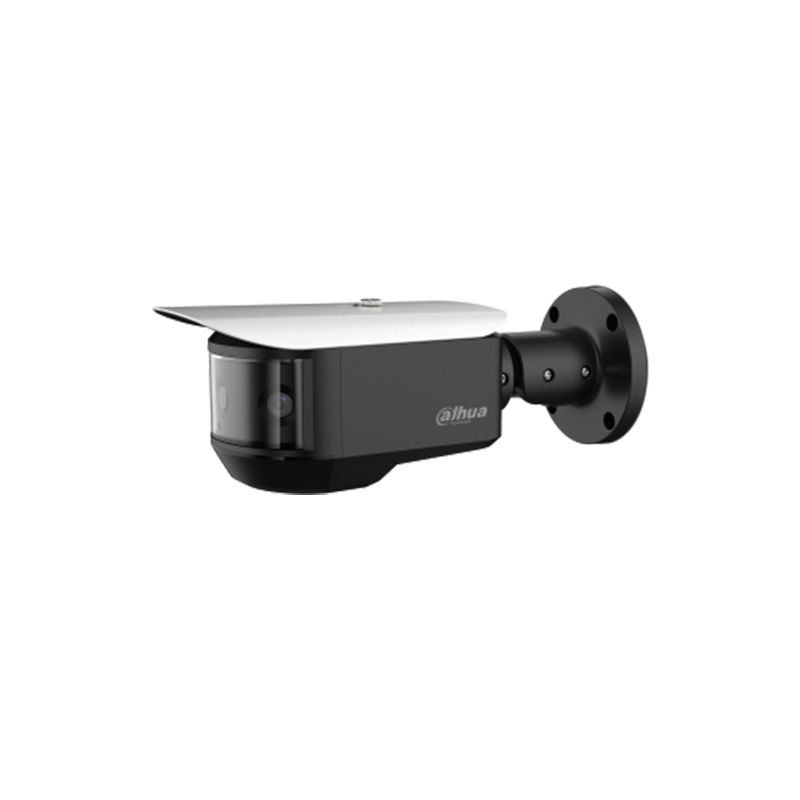

Quick Specs Figure 1 shows the appearance of HAC-PFW3601-A180.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | HAC-PFW3601-A180 |
| Type | IR Bullet Camera |
| Sensor | 3x 2MP CMOS Sensors |
| Resolution | 6MP (3x 2MP) Total |
| Video Output | 1 Channel BNC HDCVI High Definition Video Output |
| Lens Type | Fixed Lens |
| Lens Focal Length | 2.8mm |
| Field of View | 180-degrees Panoramic |
| IR Distance | Up to 30 meters (98 feet) |
| Day/Night | IR Cut Filter with Auto Switch |
| Min Illumination | 0.03Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| OSD Menu | Multi-language |
| Backlight Compensation | BLC / HLC / DWDR |
| Noise Reduction | 2D / 3D |
| Power Supply | 12V DC ��30% |
| Power Consumption | Max. 11.5W (12V DC, IR on) |
| Operating Temperature | -30��C to +60��C (-22��F to +140��F) |
| Ingress Protection | IP67 |
| Housing Material | Metal |
| Dimension | 288mm x 117mm x 103mm (11.34″ x 4.61″ x 4.06″) |
