HK-SFP-1.25G-20-1550
Model: HK-SFP-1.25G-20-1550 – Hikvision Transmission and Display Accessories
Details: SFP Module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
HK-SFP-1.25G-20-1550 Overview

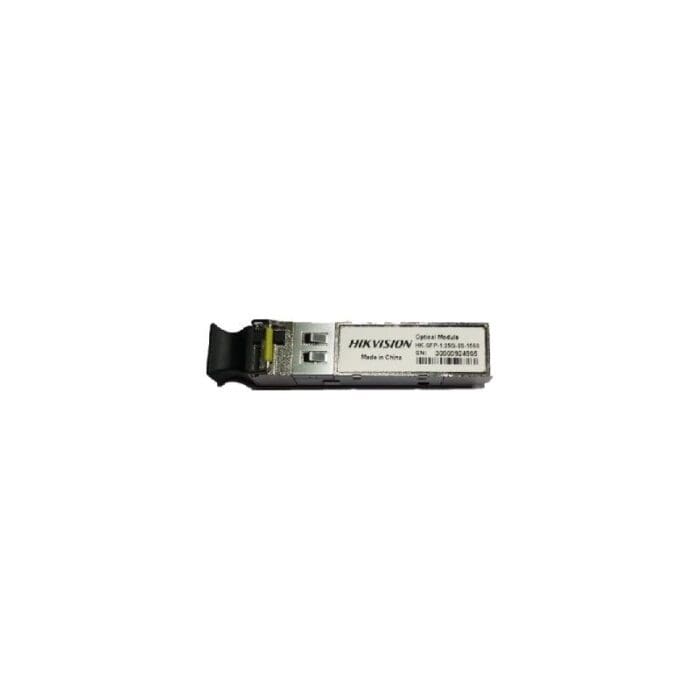

Quick Specs Figure 1 shows the appearance of HK-SFP-1.25G-20-1550.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Product Type | SFP Module |
| Model | HK-SFP-1.25G-20-1550 |
| Data Rate | 1.25 Gbps |
| Wavelength | 1550 nm |
| Max Transmission Distance | 20 km |
| Connector Type | LC |
| Operating Temperature | 0��C to 70��C |
| Storage Temperature | -40��C to 85��C |
| Compatibility | IEEE 802.3z |
| Transmitter Power | -3 to 2 dBm |
| Receiver Sensitivity | -24 dBm |
| Power Supply | 3.3 V |
| Power Consumption | < 1W |
| Dimensions | 13.4 x 56.5 x 8.5mm |
| Compliance | RoHS, CE |
| Emission Standards | FCC Part 15 Class B |
| Safety Standards | UL 60950-1 |
| Fiber Type | Single-Mode Fiber (SMF) |
| MTBF | >1,000,000 hours |
