Huawei 5G CPE Pro Antenna
Model: Huawei 5G CPE Pro Antenna – Huawei 5G Accessories
Details: Huawei 5G CPE Pro External Antenna (Outdoor)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Huawei 5G CPE Pro Antenna Overview

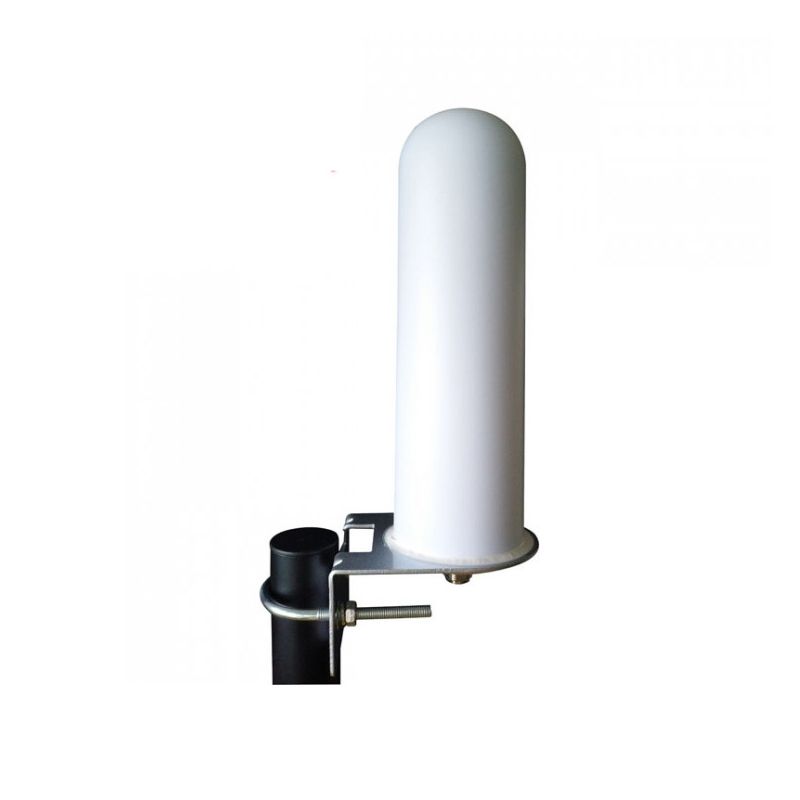

Quick Specs Figure 1 shows the appearance of Huawei 5G CPE Pro Antenna.
Table 1 shows the Quick Specs.
| Frequency Range | 698 – 4800MHz |
| Impedance | 50Ω |
| Gain | 10dBi |
| Polarization | Vertical |
| Radiation | Omni-directional |
| VSWR | ≤1.5 |
| Maximum input power | 50W |
| Connector | Two TS-9 connectors (if no extend cable is needed, the connector type is N-female) |
| Height | 28cm |
| Radome Material | ABS |
| Color | Black / White |
| Weight | 0.08kg |
| Operating Temperature | -50 ~ 80℃ |
| Diameter of spring thread | 5.5mm |
| Length of spring base | 10.5cm |
| Quality of spring | #304 stainless steel |
| Package content | – 1 unit x 5G external antenna- 1 set x bracket- Extend cable(available when ordered, the cable length is optional) |
