Sold out
Huawei AR3260 with 2*SRU200E, 2*AC Power (AR3260-2X200E-AC)
Model: AR3260-2X200E-AC – Huawei AR3200 Series Enterprise Routers
Details: Huawei AR3260,2 Service and Router Unit 200E,4 SIC,2 WSIC,4 XSIC,2 350W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
Huawei AR3260 with 2*SRU200E, 2*AC Power (AR3260-2X200E-AC) Overview

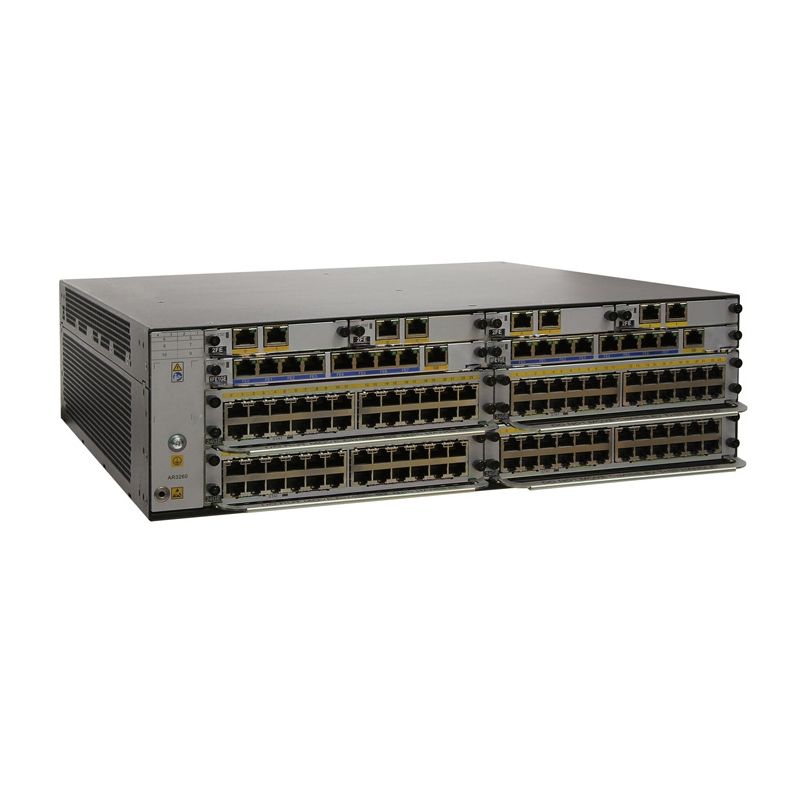

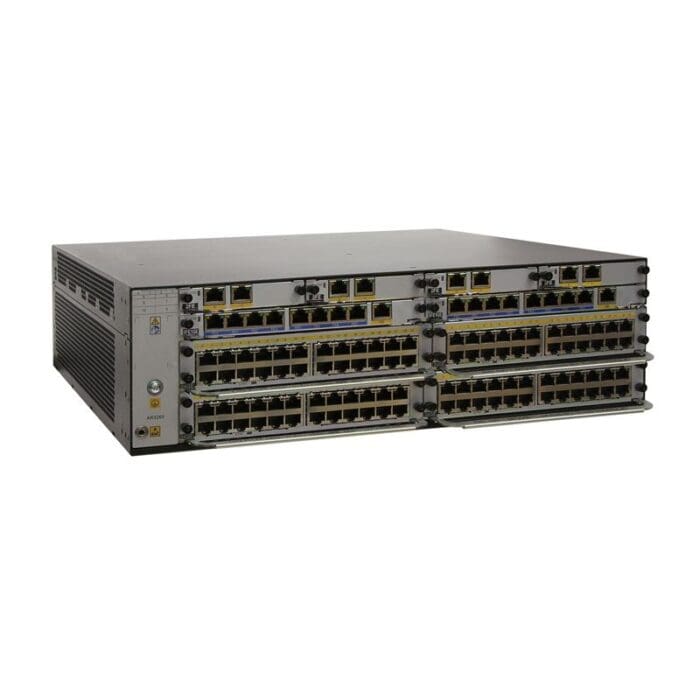

Quick Specs Figure 1 shows the appearance of Huawei AR3260 with 2*SRU200E, 2*AC Power (AR3260-2X200E-AC).
_1.png)
Table 1 shows the Quick Specs.
| Type | Huawei AR3260, 2 Service and Router Unit 200E, 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC Power |
| Device Switching Capacity | 160 Gbit/s |
| Slot Switching Bandwidth | SIC slots: 2 Gbit/sWSIC slots: 5 Gbit/sXSIC &Â EXSICÂ slots: 20 Gbit/s |
| Number of recommendedusers | 2,000 |
| SIC Slots | 4 |
| WSIC Slots | 2 |
| XSIC Slots (default/max) | 4/6 |
| EXSICÂ Slots (shared with XSIC) | 1 |
| DSP Slots | 0/3 |
| USB 2.0 Ports | 1/2 |
| Mini-USB Ports | 1 |
| Console Ports | 1 |
| Memory | 2 GB/4 GB |
| Flash (default/max) | 2 GB/8 GB |
| Maximum Power | 350W (single power module)/700W (dual power module) |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | -48V to -60V |
| Dimensions (H x WÂ x D) | 130.5 mm x 442 mm x 470 mm |
| Weight | 11 kg (without power module and interface card) |
| Ambient Temperature | 0°C to 45°C |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
| 3G | 3G Interface card (WCDMA) |
| LTE | LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radiomanagement 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (basedon IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface:PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart ApplicationControl (SAC), Hardware QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUSauthentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF,IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config,deployment using USB disk, NetConf, and CLI |
