Huawei AR3260 with SRU40, AC Power (AR0M0036SA00)
Model: Huawei AR G3 AR3200 Series Integrated Enterprise Router AR0M0036SA00
Details: AR3260,Service and Router Unit 40,4 SIC,2 WSIC,4 XSIC,350W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
Huawei AR3260 with SRU40, AC Power (AR0M0036SA00) Overview

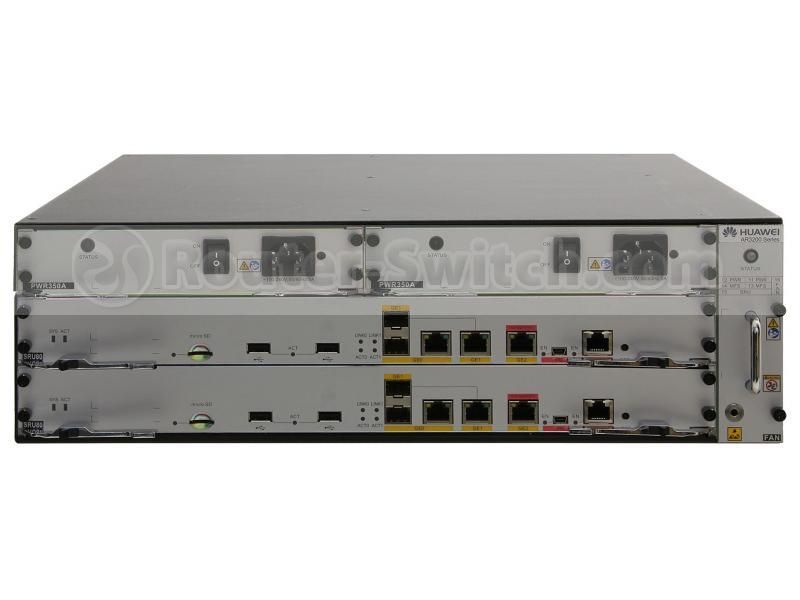

Quick Specs Figure 1 shows the appearance of Huawei AR3260 with SRU40, AC Power (AR0M0036SA00).
_1.png)
Table 1 shows the Quick Specs.
| Type | AR3260, Service and Router Unit 40, 4 SIC, 2 WSIC, 4 XSIC, 350W AC Power |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 470.0 mm x 130.5 mm |
| Memory | Configured with SRU40/SRU60/SRU80/SRU100: 2 GBConfigured with SRU200: 4 GB |
| Flash | 16 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Supported (2 GB) |
| Antenna interfaces | None |
| Service interfaces (standard configuration) | WAN interfaces:Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfacesConfigured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfacesLAN interfaces: none |
| Interface number | LAN interfaces: none |
| Extended slots | 4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
| Power module type | Pluggable power module |
| Rated voltage range | 100 V AC/240 V AC, 50 Hz/60 Hz-48 V DC/-60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz-38.4 V DC to -72 V DC |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 11 kg (24.2 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Pluggable fan module |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
