Huawei AR3260 with SRU80, AC Power (AR0M0036BA00)

$0.00

Model: Huawei AR G3 AR3200 Series Integrated Enterprise Router AR0M0036BA00
Details: AR3260,Service and Router Unit 80,4 SIC,2 WSIC,4 XSIC,350W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: Huawei AR3260 with SRU80, AC Power (AR0M0036BA00) Category:
Description

Huawei AR3260 with SRU80, AC Power (AR0M0036BA00) Overview

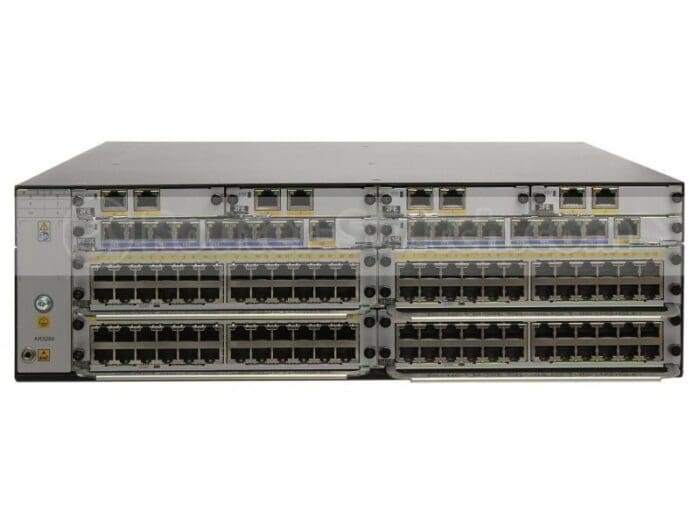

Quick Specs Figure 1 shows the appearance of Huawei AR3260 with SRU80, AC Power (AR0M0036BA00).

Table 1 shows the Quick Specs.

WAN Speed with Services *** 1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400)
Firewall Performance (large packets) 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400)
Device Switching Capacity 160 Gbit/s
Slot Switching Bandwidth SIC slots: 2 Gbit/sWSIC slots: 5 Gbit/sXSIC & EXSIC slots: 20 Gbit/s
Number of recommendedusers 2,000
Fixed WAN Ports SRU40: 3 x GE (2 x Combo)SRU80: 3 x GE (2 x Combo)SRU100E: 4 x GE Combo+ 2 x GE SFPSRU200: 4 x GE Combo+ 2 x 10 GE SFP+SRU400: 4 x GE Combo+ 2 x 10 GE SFP+
SIC Slots 4
WSIC Slots 2
XSIC Slots (default/max**) 4/6
EXSIC Slots (shared with XSIC) 1
DSP Slots 0/3
USB 2.0 Ports 1/2
Mini-USB Ports 1
Console Ports 1
Memory 2 GB/4 GB
Flash (default/max**) 2 GB/8 GB
Maximum Power 350W (single power module)/700W (dual power module)
AC Power 100V to 240V
Frequency 50 Hz/60 Hz
DC Power -48V to -60V
Dimensions (H x W x D) 130.5 mm x 442 mm x 470 mm
Weight 11 kg (without power module and interface card)
Ambient Temperature 0oC to 45°C
Ambient Humidity 5% to 95% (non-condensing)
Basic Features DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC
3G 3G Interface card (WCDMA)
LTE LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR
VPN IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), Hardware QoS
Security ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config, deployment using USB disk, NetConf, and CLI

Get more information
Do you have any question about the Huawei AR3260 with SRU80, AC Power (AR0M0036BA00)?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

Related products

-5%
Add to compare
Quick view
Add to wishlist

ASR1001-X

Original price was: $19,768.00.Current price is: $18,779.60.
Add to cart

Model: ASR1001-X Aggregation Service Router
Details: Cisco ASR1000-series router, Build-in Gigabit Ethernet port, 6 x SFP ports, 2 x SFP+ ports, 2.5G system bandwidth
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
-5%
Add to compare
Quick view
Add to wishlist

CISCO1941-SEC/K9

Original price was: $536.00.Current price is: $509.20.
Add to cart

Model: CISCO1941-SEC/K9 Cisco Router ISR G2 Security Bundle
Details: Cisco 1941 Security Bundle w/SEC license PAK
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
-5%
Add to compare
Quick view
Add to wishlist

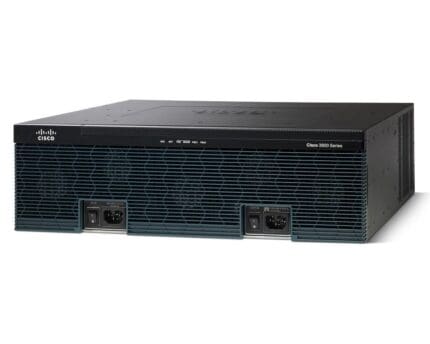

CISCO3925/K9
