Group Series 4th Generation Camera Original price was: $976.65.Current price is: $927.82.
Back to products
CP-ROOM-INJ= $0.00

Huawei Cloudlink Box 300

$0.00

Model: Huawei Cloudlink Box 300 – Huawei HD Video Conferencing Endpoints
Details: Huawei CloudLink Box 300 Ultra-HD Video Conferencing Endpoint, replace TE40
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: Huawei Cloudlink Box 300 Categories: , ,
Description

Huawei Cloudlink Box 300 Overview

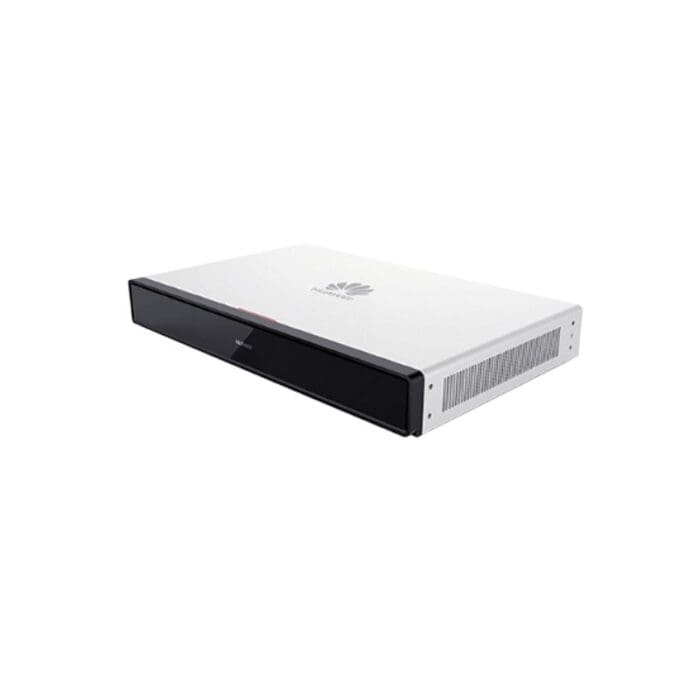

Quick Specs Figure 1 shows the appearance of Huawei Cloudlink Box 300.

Table 1 shows the Quick Specs.

Components Ultra-HD codec, ultra-HD camera (optional), microphone array (optional), CloudLink Touch, cables, and power adapter
Multimedia frameprotocols ITU-T H.323 and IETF SIP
Video codec protocols H.265, H.264 HP, H.264 BP, H.264 SVC, H.263, and H.263+
Audio codec protocols G.711A, G.711U, G.722, G.722.1, G.722.1C, G.729A, AAC-LD, and Opus
Dual-stream protocols ITU-T H.239, Binary Floor Control Protocol (BFCP), and data
Other communicationsprotocols H.225, H.235, H.241, H.245, H.281, H.350, H.460, RFC2833, LDAP, and LDAPS
Network transmissionprotocols TCP/IP, RTP, RTCP, DHCP, DNS, SMTP, SNMP, SNTP, Telnet, SSH, HTTP, HTTPS, and TR-069
Content resolution Inputs:HDMI: 640×480 60/72/75/85fps, 800×600 56/60/72/75/85fps, 1024×768 60/70/75/85fps,1152×864 60/75/85fps, 1280×600 60fps, 1280×720 60/75/85fps, 1280×768 60/75/85fps,1280×800 60/75/85fps, 1280×960 60/75/85fps, 1280×1024 60/75/85fps, 1360×768 60fps, 1366×768 60fps,1440×900 60fps, 1400×1050 60fps, 1600×900 60fps, 1600×1200 60fps, 1680×1050 60fps,1920×1080 24/25/30/50/60fps, 1920×1200 60fps, 3840×2160 25/30/50/60fpsEncoding/Decoding resolution: CIF(352*288) 640*480 4CIF(704*576) 800*600 1024*768 720P(1280*720)1280*1024 448P(768*448) 1080P(1920*1080) 1600*1200 1920*1200 1152*864 1280*600 1280*7681280*800 1280*960 1360*768 1366*768 1440*900 1400*1050 1600*900 1680*1050 2048*1152 2048*12362048*1536 2048*1556 2560*1440 2560*1600 2560*2048 2880*1620 2880*1800 3200*1800 4K(3840*2160)Outputs: 1920 x 1080, 3840 x 2160
Other video features Various display modes, such as Picture in Picture (PiP) and Picture out Picture (PoP),Video Motion Enhancement (VME), VideoIntensififier, and ViewProcessing
Audio features Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), VoiceClear, AudioEnhancer, and lip synchronization
Languages Simplifified Chinese, English, French, German, Japanese, Spanish, Portuguese (Brazil), Traditional Chinese, and Russian
Prominent features • USB-based automatic configuration (plug-and-play)• Wi-Fi access *• SiteCall• Wireless data sharing• AirPresence• LDAP/network address book• Web-based meeting control• Video monitoring on the web interface• HD image snapshot (two display modes: 16:9 and 4:3)• Picture in Picture (PiP) (small window:1/16 of the main window in size with adjustable position)• Open APIs for third-party integration and development*: These are only for the Box 300 or 600 with a Wi-Fi module.
Networkadaptability IPv4/IPv6, IP Precedence, DiffServ, and URI dialingSuper Error Concealment (SEC), Automatic Repeat Request (ARQ), Forward Error Correction (FEC),Intelligent Rate Control (IRC), and Backward Error Correction (BEC)
Networksecurity H.235/TLS for signaling encryption and SRTP for media encryptionMeeting access password, meeting control password, administrator passwordDual-stream encryption
Firewall traversal H.460-based traversal between private and public networks, static network address translation (NAT)
Environmentalrequirements Temperature: 0℃ to 40℃ (32℉ to 104℉ ) (in use) -40℃ to +70℃ (-40℉ to 158℉) (idle)Relative humidity: 5% to 95% (in use) 5% to 95% (idle)Ambient noise: < 46 dBA SPL
Regulatorycompliance CCC, CE (RoHS, REACH, and WEEE), Network Access License of MIIT, and Radio Type Approval Certifification
Positioning Business
Scenes Small and medium-sized meeting rooms
Video Resolution • H.264 (min. bandwidth required)1080p 60 fps at 1 Mbit/s1080p 30 fps at 512 kbit/s720p 60 fps at 768 kbit/s720p 30 fps at 384 kbit/s• H.265 (min. bandwidth required)4K 30 fps at 2 Mbit/s1080p 60 fps at 768 kbit/s1080p 30 fps at 384 kbit/s720p 60 fps at 512 kbit/s720p 30 fps at 256 kbit/s
Dual-streamcapability • 1080p 30 fps + 1080p 30 fps (4K 8 fps)• 1080p 60 fps + 1080p 60 fps (4K 15 fps)• 4K 30 fps + 1080p 60 fps• Data conference: 1080p 30 fps/4K 8 fps
Video input ports 1 x HT-RX2 x HDMI
Video output ports 2×HDMI
Audio input ports 1 x HD-AI1 x XLR connector1 x HDMI (audio input)2 x RCA
Audio output ports 4 x RCA2 x HDMI (audio output)
Other ports 2 x USB 2.0 Type-A2 x 10/100/1000 Mbit/s LAN1 x PoE network port (Touch)2 x RJ45 serial port1 x Wi-Fi (built-in)
Microphone cascading 2
Bandwidth IP: 64 kbit/s to 8 Mbit/s
Dimensions Endpoint:58 mm x 442 mm x 285 mm(2.28 in. x 17.40 in. x 11.22 in.)Package:265 mm x 580 mm x 380 mm(10.43 in. x 22.83 in. x 14.96 in.)Net weight: 5.2 kg (11.5 lb)Gross weight: 9.8 kg (21.6 lb)
Electrical features Working voltage: 100 V to 240 V ACWorking frequency: 50 Hz to 60 HzMax. power consumption: 180 WEmbedded AC/DC power module
