-5%
Huawei NE20E-S4 with 1*MPUE, 2*DC Power (CR2M04BASD01)
Model: Huawei NetEngine NE20E Series Router CR2M04BASD01
Details: NE20E-S4 DC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*DC Power,Power cord,without Software Charge and Document
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Huawei NE20E-S4 with 1*MPUE, 2*DC Power (CR2M04BASD01) Overview

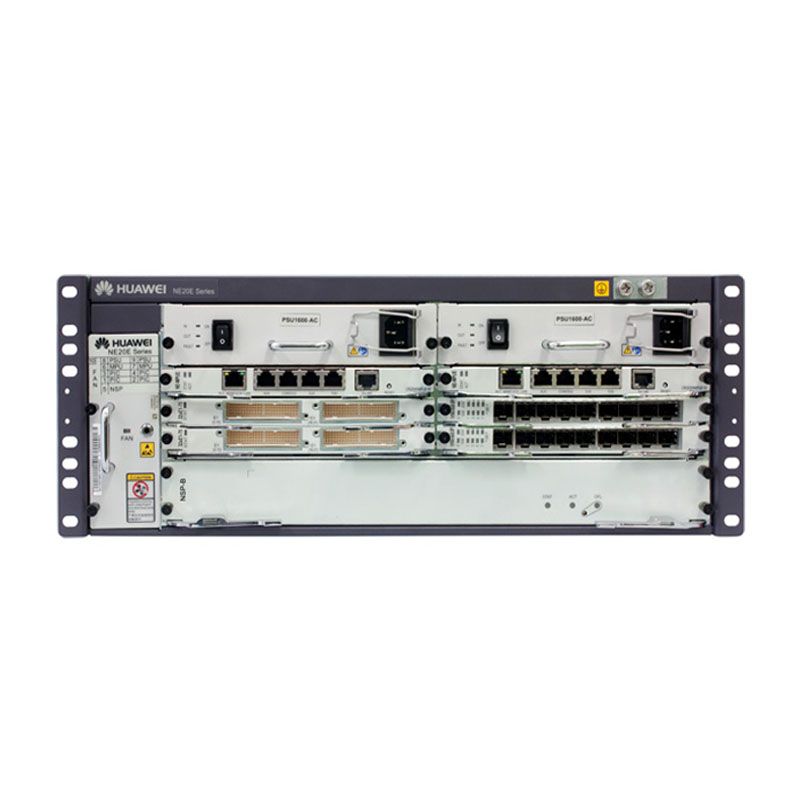

Quick Specs Figure 1 shows the appearance of Huawei NE20E-S4 with 1*MPUE, 2*DC Power (CR2M04BASD01).
_1.png)
Table 1 shows the Quick Specs.
| Switching Capacity | 480 Gbit/s |
| Forwarding Performance | 180 Mpps |
| Fixed Ports | — |
| Number of Slots | 2 MPUs1 NSP4 PICs |
| Dimensions(H x W x D) | 5.1 in. x 17.4 in. x 8.6 in. DC = 3U (132 mm x 442 mm x 220 mm DC = 3U) |
| Power consumption (in full configuration) | 398W (DC) |
| Weight in Full Configuration | 30.2 lb (13.7 kg) (DC) |
| Interface Types | 40 GE10 GEGE/FEOC-3c/STM-1c POSOC-12c/STM-4c POSChannelized OC-3/STM-1 POSE1/CE1 |
| Clock Synchronization | Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features | IEEE 802.1qIEEE 802.1pIEEE 802.3adIEEE 802.1abSTP/RSTP/MSTP |
| IPv4/IPv6 Routing Protocols | IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGPIPv4/IPv6 dual stackIPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PEIPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing |
| L2/L3 VPN | LDP over TE, VPLS, H-VPLS, and VPN policy-based routingMartini MPLS L2VPNVLL/VPLS accessing L3VPNMPLS/BGP L3VPN and inter-AS VPN |
| Multicast | IGMPv1/v2/v3IGMP snoopingIPv6 multicastStatic multicast routingPIM-SMPIM-SSMMBGPNG MVPN |
| QoS | WREDFive-level HQoSVLL/PWE3 QoS |
| Reliability | NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRPGR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIMBFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6Fast convergence of BGP/IGP/multicast routesIP/LDP FRR, TE FRR, VPN FRR, and VLL FRREthernet OAM, Y.1731, and PWE3 E2E protectionISSU and in-service patching for smooth software upgrades |
| Security | ACL-based packet filteringAAASNMPv3 encryption and authenticationURPF, GTSM, DHCP snoopingARP attack defenseSSHv2 |
| Value-added Services | NAT, IPSec, GRE, and NetStream |
| OAM | Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah |
| Operating Temperature | -40°F to 149°F(-40°C to 65°C) |
| Operating Relative Humidity | 5% to 85%, non-condensing |
| Operating Altitude | ≤ 9,842.5 ft. (3,000m) |
