Huawei QSFP-4SFP10G-CU5M
Model: Huawei QSFP-4SFP10G-CU5M Optical Transceiver
Details: QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Huawei QSFP-4SFP10G-CU5M Overview

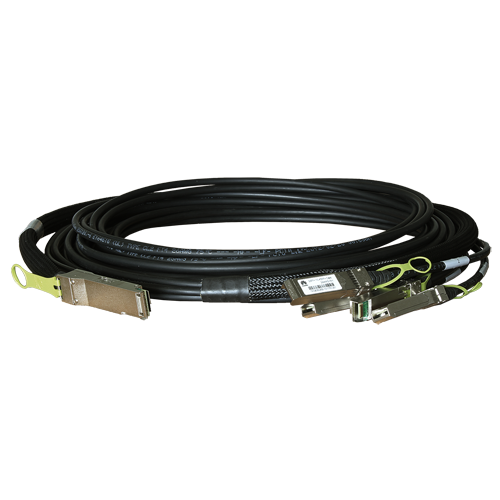

Quick Specs Figure 1 shows the appearance of Huawei QSFP-4SFP10G-CU5M.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | QSFP-4SFP10G-CU5M |
| Connector Type | QSFP+, 4 SFP+ |
| Cable Type | High Speed Direct-attach Cable |
| Data Rate | 10 Gbps per SFP+ |
| Cable Length | 5 meters |
| Compatibility | QSFP+38M, CC8P0.4B(S), 4*SFP+20M |
| Usage | Indoor |
| Application | Data Centers, High-Performance Computing Networks |
| Compliance | IEEE 802.3, RoHS, CE |
| Operating Temperature | 0°C to 70°C |
| Cable Jacket Material | PVC |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Frequency | Up to 10 Gbps |
| Insertion Loss | < 24 dB |
| Return Loss | < 12 dB |
| Eye Mask Compliance | IEEE 802.3 |
| Bit Error Rate (BER) | 10^(-12) |
| Mating Cycles | 100 times |
| Product Warranty | 1 Year |
