Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00)
Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00) $0.00

Huawei S9703 Chassis with 2*MCUA, 2*AC Power (EH1Z03EACM00)

$0.00

Model: EH1Z03EACM00 – Huawei S9700 Core Routing Switch
Details: Huawei S9703 Basic Engine AC Bundle(Including Assembly Chassis*1,MCUA Main Board*2,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(X1E,RJ45)*1,Basic Software*1)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: Huawei S9703 Chassis with 2*MCUA, 2*AC Power (EH1Z03EACM00) Categories: , ,
Description

Huawei S9703 Chassis with 2*MCUA, 2*AC Power (EH1Z03EACM00) Overview

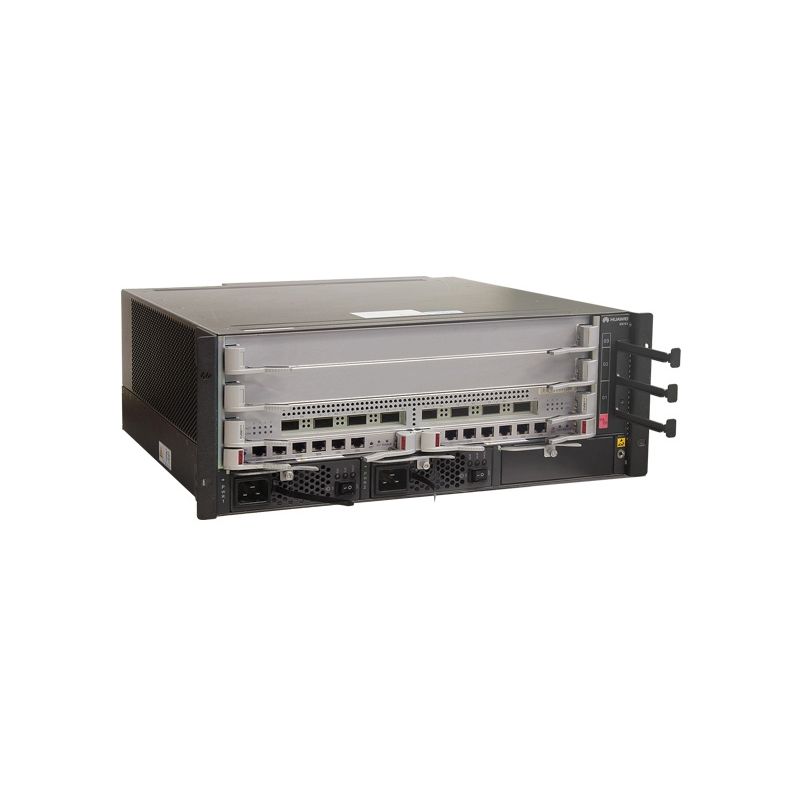

Quick Specs Figure 1 shows the appearance of Huawei S9703 Chassis with 2*MCUA, 2*AC Power (EH1Z03EACM00).

Table 1 shows the Quick Specs.

Series Huawei S9703 Switch
Bundle Huawei S9703 Basic Engine AC Bundle(Including Assembly Chassis*1,MCUA Main Board*2,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(X1E,RJ45)*1,Basic Software*1)
Switching capacity 2.88 Tbit/s or 5.76 Tbit/s
Packet forwarding rate 2160 Mpps
Service slots 3
Wireless network management Native ACAP access control, AP region management, and AP profile managementRadio profile management, uniform static configuration, and centralized dynamicmanagementBasic WLAN services, QoS, security, and user management
User management unified user management802.1x, MAC address, and Portal authenticationTraffic- and time-based accountingUser authorization based on user groups, domains, and time ranges
iPCA quality awareness Marking real service packets to obtain real-time count of dropped packets andpacket loss ratioCounting number of dropped packets and packet loss ratio on devices and L2/L3networks
SVF 2.0 virtualization Virtualizing access switches (ASs) and APs into one logical device to simplifymanagement and maintenanceTwo layers of ASs allowed in an SVF systemThird-party devices allowed between SVF parent and clients
VLAN Supports adding access, trunk, and hybrid interfaces to VLANsSupports the default VLANSupports VLAN switchingSupports QinQ and selective QinQSupports MAC address-based VLAN assignment
MAC address Supports automatic learning and aging of MA C addressesSupports static, dynamic, and blackhole MAC address entriesSupports packet filtering based on sour ce MAC addressesSupports MAC address limiting based on ports and VL ANs
STP/ERPS Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)Supports BPDU protection, root protection, and loop protectionSupports BPDU tunnelERPS (G.8032)
IP routing Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-ISSupports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, andBGP4+
Multicast Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snoopingSupports PIM-SM, PIM-DM, PIM-SSMSupports MSDP, MBGPSupports prompt leaveSupports multicast traffic controlSupports multicast querierSupports suppression on multicast packetsSupports multicast CACSupports multicast ACL
MPLS Supports basic MPLS functionsSupports MPLS OAMSupports MPLS TESupports MPLS VPN/VLL/VPLS
Reliability Supports LACP and E-TrunkSupports VRRP and BFD for VRRPSupports BFD for BGP/IS-IS/OSPF/static routeNSR, NSF, and GR for BGP/IS-IS/OSPF/LDPSupports TE FRR and IP FRRSupports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)HSRSupports ITU-Y.1731Supports DLDP
QoS Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4protocols, and 802.1p prioritySupports actions of ACL, CAR, re-mark, and scheduleSupports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, andSP+DRRSupports congestion avoidance mechanisms, such as WRED and tail dropSupports H-QoSSupports traffic shaping
Network synchronization Ethernet synchronization1588v2
Dimensions (H x W x D in mm) 175 x 442 x 489, 4U
Chassis weight(empty) 11 kg
Operating Voltage DC: –40V to –72VAC: 90V to 290V
Power supply capability of the equipment 2200W

Get more information
Do you have any question about the Huawei S9703 Chassis with 2*MCUA, 2*AC Power (EH1Z03EACM00)?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
