Huawei S9706 Chassis with SRUD, 2*AC Power (EH1B06EACD00)
Model: EH1B06EACD00 – Huawei S9700 Core Routing Switch
Details: Huawei S9706 Basic Engine AC Bundle(Including Assembly Chassis,SRUD Main Board*1,12-Port 10GBASE-X Interface Card(SA,SFP+) *1,2200W AC Power*2,Basic Software*1)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
Huawei S9706 Chassis with SRUD, 2*AC Power (EH1B06EACD00) Overview

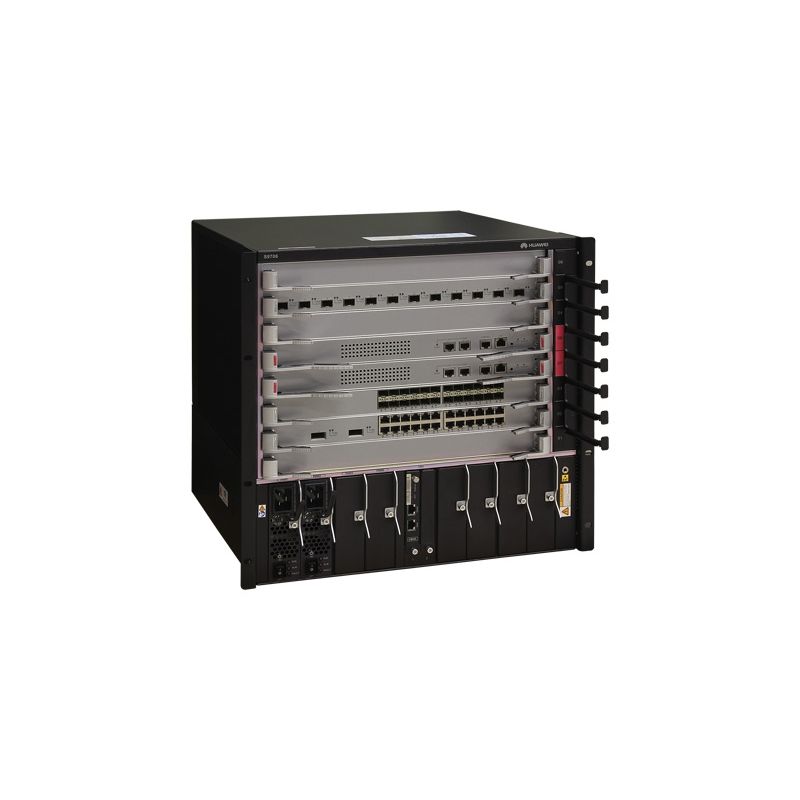

Quick Specs Figure 1 shows the appearance of Huawei S9706 Chassis with SRUD, 2*AC Power (EH1B06EACD00).
_1.png)
Table 1 shows the Quick Specs.
| Series | Huawei S9706 Switch |
| Bundle | Huawei S9706 Basic Engine AC Bundle(Including Assembly Chassis, SRUD Main Board*1, 12-Port 10GBASE-X Interface Card (SA,SFP+) *1, 2200W AC Power*2, Basic Software*1) |
| Switching capacity | 6.72 Tbit/s; 14.72 Tbit/s |
| Packet forwarding rate | 2,880 Mpps/5,040 Mpps |
| Service slots | 6 |
| Wireless network management | Native ACAP access control, AP region management, and AP profile managementRadio profile management, uniform static configuration, and centralized dynamicmanagementBasic WLAN services, QoS, security, and user management |
| User management | unified user management802.1x, MAC address, and Portal authenticationTraffic- and time-based accountingUser authorization based on user groups, domains, and time ranges |
| iPCA quality awareness | Marking real service packets to obtain real-time count of dropped packets andpacket loss ratioCounting number of dropped packets and packet loss ratio on devices and L2/L3networks |
| SVF 2.0 virtualization | Virtualizing access switches (ASs) and APs into one logical device to simplifymanagement and maintenanceTwo layers of ASs allowed in an SVF systemThird-party devices allowed between SVF parent and clients |
| VLAN | Supports adding access, trunk, and hybrid interfaces to VLANsSupports the default VLANSupports VLAN switchingSupports QinQ and selective QinQSupports MAC address-based VLAN assignment |
| MAC address | Supports automatic learning and aging of MA C addressesSupports static, dynamic, and blackhole MAC address entriesSupports packet filtering based on sour ce MAC addressesSupports MAC address limiting based on ports and VL ANs |
| STP/ERPS | Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)Supports BPDU protection, root protection, and loop protectionSupports BPDU tunnelERPS (G.8032) |
| IP routing | Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-ISSupports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, andBGP4+ |
| Multicast | Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snoopingSupports PIM-SM, PIM-DM, PIM-SSMSupports MSDP, MBGPSupports prompt leaveSupports multicast traffic controlSupports multicast querierSupports suppression on multicast packetsSupports multicast CACSupports multicast ACL |
| MPLS | Supports basic MPLS functionsSupports MPLS OAMSupports MPLS TESupports MPLS VPN/VLL/VPLS |
| Reliability | Supports LACP and E-TrunkSupports VRRP and BFD for VRRPSupports BFD for BGP/IS-IS/OSPF/static routeNSR, NSF, and GR for BGP/IS-IS/OSPF/LDPSupports TE FRR and IP FRRSupports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)HSRSupports ITU-Y.1731Supports DLDP |
| QoS | Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4protocols, and 802.1p prioritySupports actions of ACL, CAR, re-mark, and scheduleSupports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, andSP+DRRSupports congestion avoidance mechanisms, such as WRED and tail dropSupports H-QoSSupports traffic shaping |
| Network synchronization | Ethernet synchronization1588v2 |
| Dimensions (H x W x D in mm) | 441.7 mm x 442 mm x 489 mm, 10U |
| Chassis weight(empty) | 29 kg |
| Operating Voltage | DC: –40V to –72VAC: 90V to 290V |
| Power supply capability of the equipment | 4,400W |
