Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00)

$0.00

Model: EH1B12EACD00 – Huawei S9700 Core Routing Switch
Details: Huawei S9712 Basic Engine AC Bundle(Including Assembly Chassis,SRUD Main Board*1,12-Port 10GBASE-X Interface Card(SA,SFP+) *1,2200W AC Power*2,Basic Software*1)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00) Categories: , ,
Description

Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00) Overview

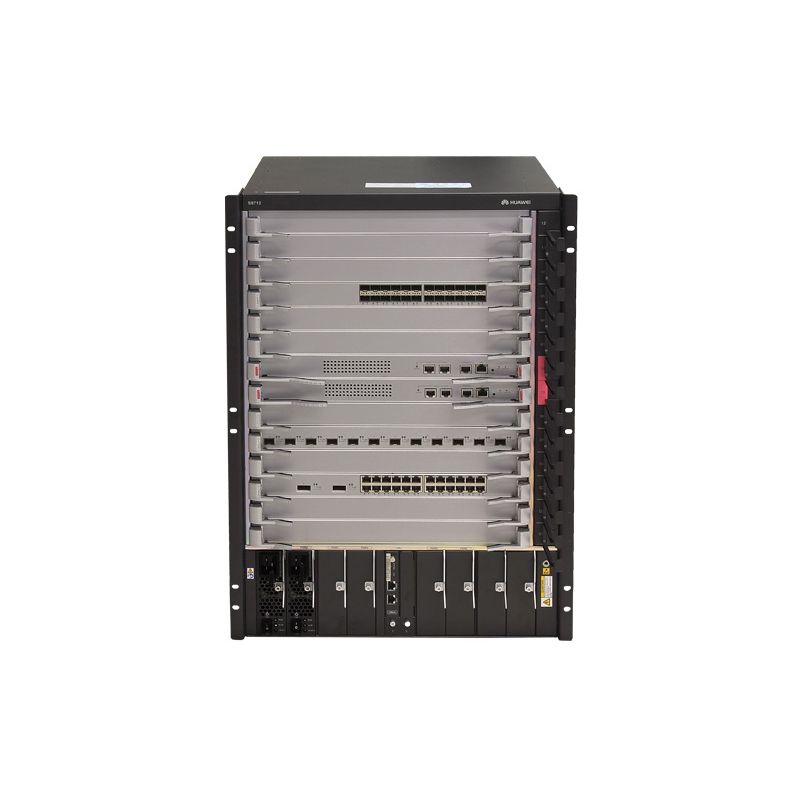

Quick Specs Figure 1 shows the appearance of Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00).

Table 1 shows the Quick Specs.

Type Huawei S9712 Basic Engine AC Bundle (Including Assembly Chassis, SRUD Main Board*1, 12-Port 10GBASE-X Interface Card (SA,SFP+) *1, 2200W AC Power*2, Basic Software*1)
Switching Capacity 8.64 Tbit/s; 18.56 Tbit/s
Packet Forwarding Rates 3,840 Mpps/6,480 Mpps
Service Slots 12
Wireless Network Management Native AC
User Management Unified user management
iPCA Quality Awareness Marking real service packets to obtain real-time count of dropped packets and packet loss ratio
SVF Virtualization Virtualizing Access Switches (ASs) and APs into one logical device to simplify management and maintenance
VLAN Access, trunk, and hybrid interfaces supported
MAC Address Automatic learning and aging of MAC addresses
STP/ERPS STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
IP Routing IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
Multicast IGMP v1/v2/v3, IGMP v1/v2/v3 snooping
MPLS MPLS functions
Reliability LACP and E-Trunk
QoS Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Network Synchronization Ethernet synchronization
Configuration and Maintenance Console, Telnet, and SSH login
Security and Management 802.1x authentication and portal authentication
Value-added Services Firewall
Interoperability Interoperable with VBST (compatible with PVST/PVST+/RPVST)
Energy Saving Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions (H x W x D) 663.95 mm x 442 mm x 489 mm, 15U
Chassis Weight (empty) 37 kg
Operating Voltage DC: –40V to –72VAC: 90V to 290V
Equipment Power Supply Capability 6,600W

Get more information
Do you have any question about the Huawei S9712 Chassis with SRUD, 2*AC Power (EH1B12EACD00)?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
