iDS-7716NXI-I4/16P/X(B)
Model: iDS-7716NXI-I4/16P/X(B) – Hikvision DeepinMind NVR
Details: 16-ch 1.5U 16 PoE 4K DeepinMind NVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
iDS-7716NXI-I4/16P/X(B) Overview

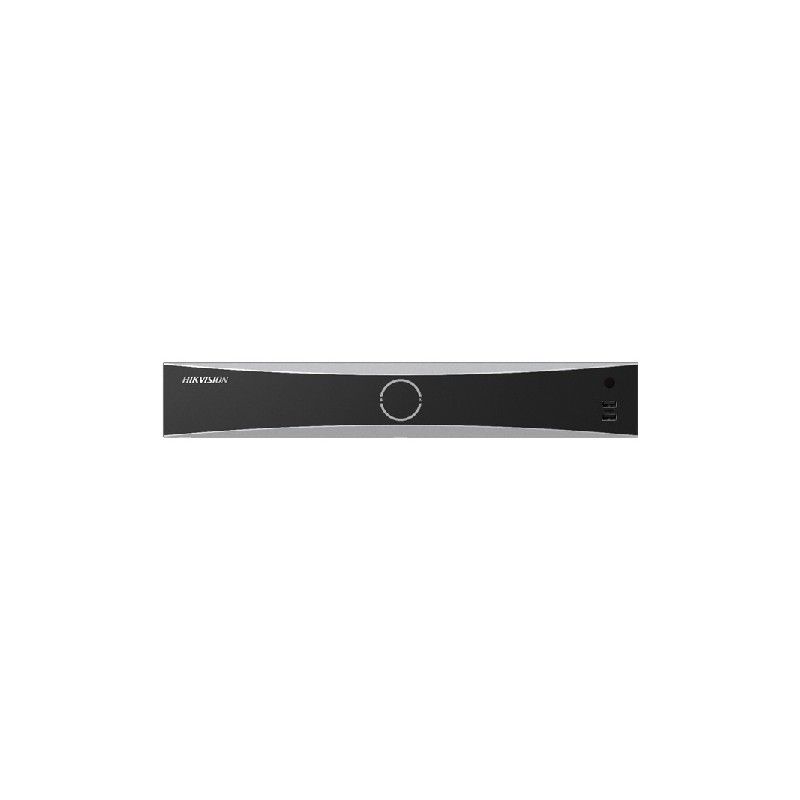

Quick Specs Figure 1 shows the appearance of iDS-7716NXI-I4/16P/X(B).
_1.png)
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | iDS-7716NXI-I4/16P/X(B) |
| Channels | 16 |
| Form Factor | 1.5U |
| PoE Ports | 16 |
| Video Output | 4K |
| Intelligence | DeepinMind |
| Compression Format | H.265+/H.265/H.264+/H.264 |
| Max Incoming Bandwidth | 320 Mbps |
| Max Outgoing Bandwidth | 256 Mbps |
| Max Decoding Capability | 12-ch @ 1080p |
| HDMI Output | 2 HDMI (4K + 1080p) |
| VGA Output | 1 VGA (1080p) |
| Audio Output | 1-ch, RCA |
| Alarm In/Out | 16/4 |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| HDD Bays | 4 SATA interfaces |
| RAID | RAID0, RAID1, RAID5, RAID10 |
| Internal Operating System | Embedded Linux |
| Power Supply | 100 to 240 VAC |
| Power Consumption (without HDD) | ��20 W |
| Operating Temperature | -10 ��C to +55 ��C (14 ��F to 131 ��F) |
| Operating Humidity | 10% to 90% |
| Dimensions (W x D x H) | 445 �� 390 �� 70 mm (17.5 �� 15.4 �� 2.8 inches) |
