-5%

IE-1000-8P2S-LM

Name: IE-1000-8P2S-LM
SKU: IE-1000-8P2S-LM
Availability: InStock

Original price was: $2,774.00.Current price is: $2,635.30.

Model: IE-1000-8P2S-LM – Cisco Industrial Ethernet 1000 Switches
Details: IE-1000 GUI based L2 PoE switch, 2 GE SFP, 8 FE copper ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to compare

Add to wishlist

SKU: IE-1000-8P2S-LM Categories: Cisco Industrial Ethernet 1000 Switches, Cisco Switches, Switches

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

Description

IE-1000-8P2S-LM Overview

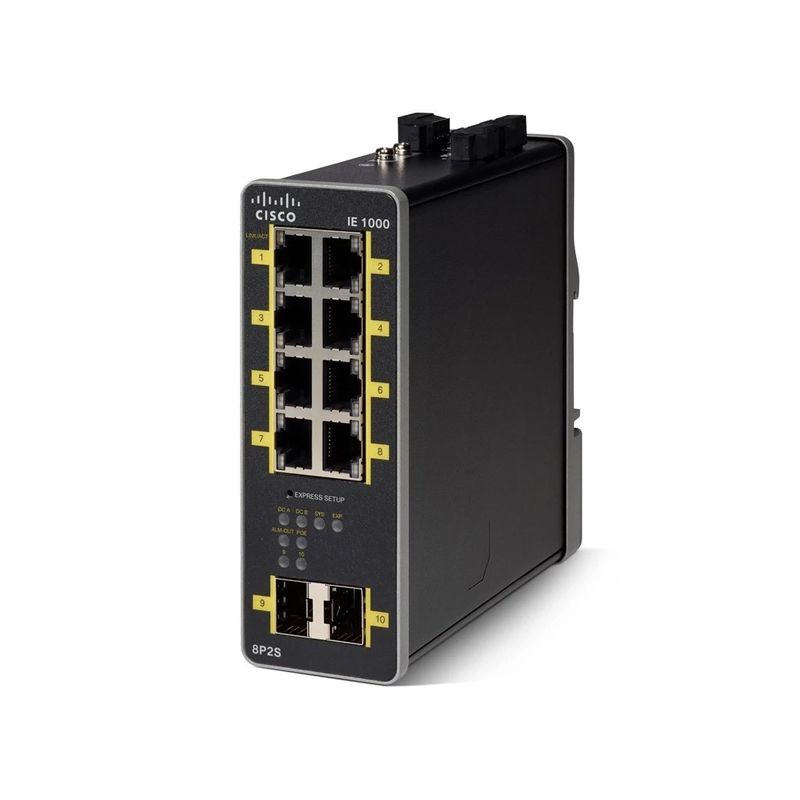

Quick Specs Figure 1 shows the appearance of IE-1000-8P2S-LM.

Table 1 shows the Quick Specs.

Forwarding Bandwidth	• Max:2.8Gbps
Switching Bandwidth	• Max:5.6Gbps
Hardwar	• DRAM: 128 MB DDR2 without ECC• Onboard flash memory: 160 MB
Alarm	• Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC
Power consumption	Without PoE 10.6W, with PoE 134.4-205.2W
Connectors and cabling	• 100BASE-FX MMF (2 km)—TBD with engineer input• 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Dimensions (H x W x D)including DIN rail	5.0”H x 1.8” W x 5.3”D (127mm H x 45.7mmW x 134mm D)
Software features	LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port – security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS)
Safety Certifications	• UL/CSA 60950-1• EN 60950-1• CB to IEC 60950-1 (with country deviations)• NOM to NOM-019-SCF1 (through partners and distributors)• UL/CSA/IEC/EN 61010-2-201• CE Marking
Hazardous Locations	• ANSI/ISA 12.12.01 (Class1, Div2 A-D)• EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)• IEC 60079-0, 15 (report only)• UL 60079-0, 15• CAN/CSA C22.2 No. 60079-0, -15* Cabinet enclosure required
EMC Emissions and Immunity Compliance	• FCC 47 CFR Part 15 Class A• EN 55022/CISPR 22 Class A• EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A• RoHS compliance• AS/NZS CISPR 22 Class A, AS/NZS CISPR 24• CISPR11 Class A, CISPR22 Class A• ICES 003 Class A• KCC Marking (Korea)• CE Marking• RCM Marking (Australia/New Zealand)• EAC Marking (Eurasian Conformity)• Anatel (Brazil)• China NAL• IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact• IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz)• IEC/EN 61000-4-4 (Fast Transients – 2kV DC power, 2kV data line, 4kv earth)• IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line)• IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz)• IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec)• IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m)• IEC/EN 61000-4-29 (Voltage Dips Immunity)
Shock and Vibration	• IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)• IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal)• IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration)• EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration)
Industry Standard	• IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)• IEC/EN 61000-6-2 (Immunity for Industrial Environments)• IEC/EN 61000-6-4 (Emissions for Industrial Environments)• EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical)• EN61326-1 (Industrial Controls)• Marine–TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A)• EN 50581 (RoHS)• China RoHS• EU WEEE• NEMA TS-2 (EMC, environmental, mechanical)• IP30
Humidity	• IEC 60068 -2-3• IEC 60068-2-30 (Test Db)• Relative humidity: 5% to 95% non-condensing
Operating Temperature	• -40 °C to +70 °C (vented enclosure operating)• -40 °C to +60 °C (sealed enclosure operating)• -34 °C to +75 °C (fan or blower-equipped enclosure operating)• Operational altitude: Up to 13.8k ft• IEC 60068-2-1• IEC 60068-2-2• IEC 60068-2-56• -40 C to +85 C (storage temperature)• IEC 60068-2-14 (Test Nb)• Storage altitude: Up to 15,000 ft
Mean Time Between Failure (MTBF)	• Meantime between failure: 374,052 hours (42.7 years)
Warranty	• Five-year limited warranty on all IE-1000 hardware PIDs and all IE power supplies defined in Table 2 previously. See the following link for details on warranty
