IE-2000-16PTC-G-E
Model: IE-2000-16PTC-G-E – Industrial Ethernet 2000 Series
Details: IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Lan Base)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-2000-16PTC-G-E Overview

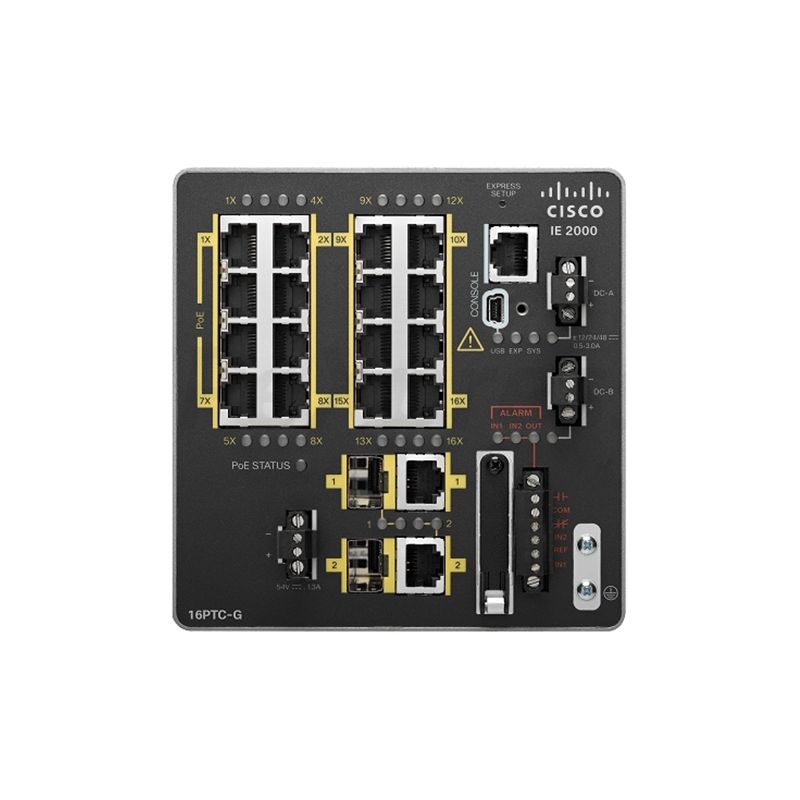

Quick Specs Figure 1 shows the appearance of IE-2000-16PTC-G-E.
Table 1 shows the Quick Specs.
| Total Ports | 18 |
| RJ45 Ports | 16 FE |
| Combo Ports | 2 GE |
| Manufacturing license | LAN Base |
| IEEE 1588 | Yes |
| L2NAT | Upgradable to L2NAT via Enhanced Lan Base or IP Lite license |
| PoE | Yes |
| Power consumption | 4-port PoE/PoE+ models: 21-30 W (16-port base switch) and 4 PoE/PoE+ power requirement |
| Hardware | ● 256 MB DRAM with ECC memory● IEEE 1588v2 FPGA● 64 MB on-board flash memory● 1GB removable SD flash memory card (optional)● Mini-USB connector |
| Alarm | ● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Connectors and cabling | ● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| LAN Lite license | Baseline features |
| Layer 2 switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | FIPS 140-2 |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| LAN Base license | Additional features |
| Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| IPv4 routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Enhanced LAN Base | Additional features |
| Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| IP Lite license | Additional features |
| IPv6 Routing | IPv6 Static routing, OSPFv3 |
| Embedded Event Manager | EEM feature enabled with IP Lite license |
| DNA Essentials | Additional features |
| Cisco DNA Center | Discovery, topology, inventory, software image management |
| Visibility | DNA assurance, Device 360 |
| Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
