IE-2000U-4TS-G
Model: IE-2000U-4TS-G – Cisco Industrial Ethernet 2000 Switches
Details: IE 2000U 4 x 10/100, 2 SFP GE ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-2000U-4TS-G Overview

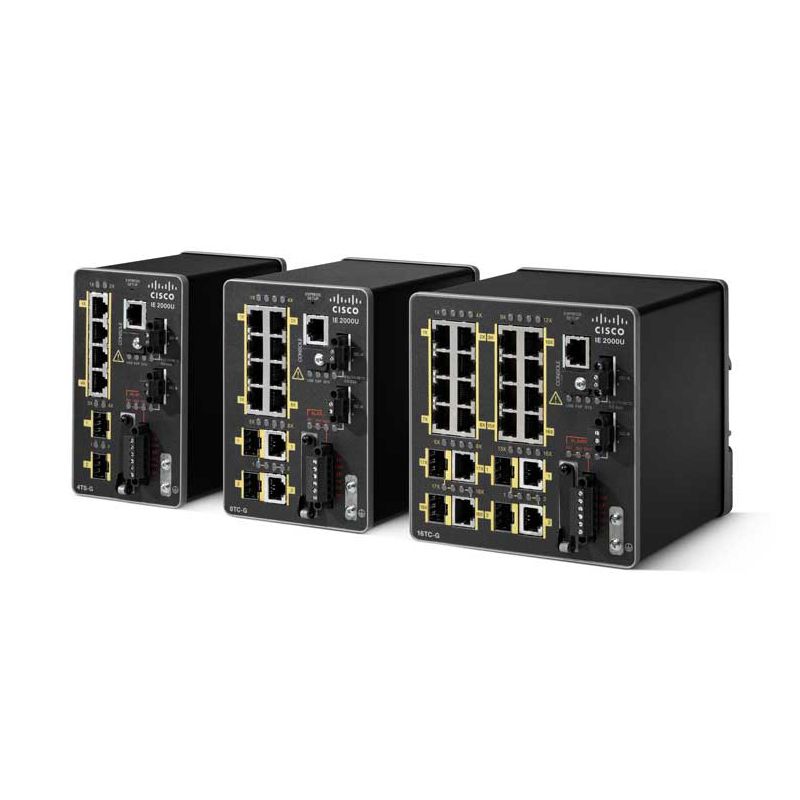

Quick Specs Figure 1 shows the appearance of IE-2000U-4TS-G.
Table 1 shows the Quick Specs.
| Device Type | Switch – 6 ports – managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 + 2 x Gigabit SFP |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 255 ¦ IGMP groups: 255 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTPS, SSH, CLI |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Port Security, Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, UL 508, CSA C22.2 No. 60950-1 |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Interfaces | 4 x 100Base-TX RJ-45 ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console ¦ 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Software Included | Cisco IOS LAN Base |
| Width | 2.9 in |
| Depth | 4.5 in |
| Height | 5 in |
| Service & Support | Limited warranty – advance parts replacement – 5 years – response time: 10 days |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -58 °F |
| Max Storage Temperature | 185 °F |
