IE-3000-8TC
Model: IE-3000-8TC – Industrial Ethernet 3000 Series
Details: Cisco IE 3000 Switch, 8 10/100 + 2 T/SFP
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-3000-8TC Overview

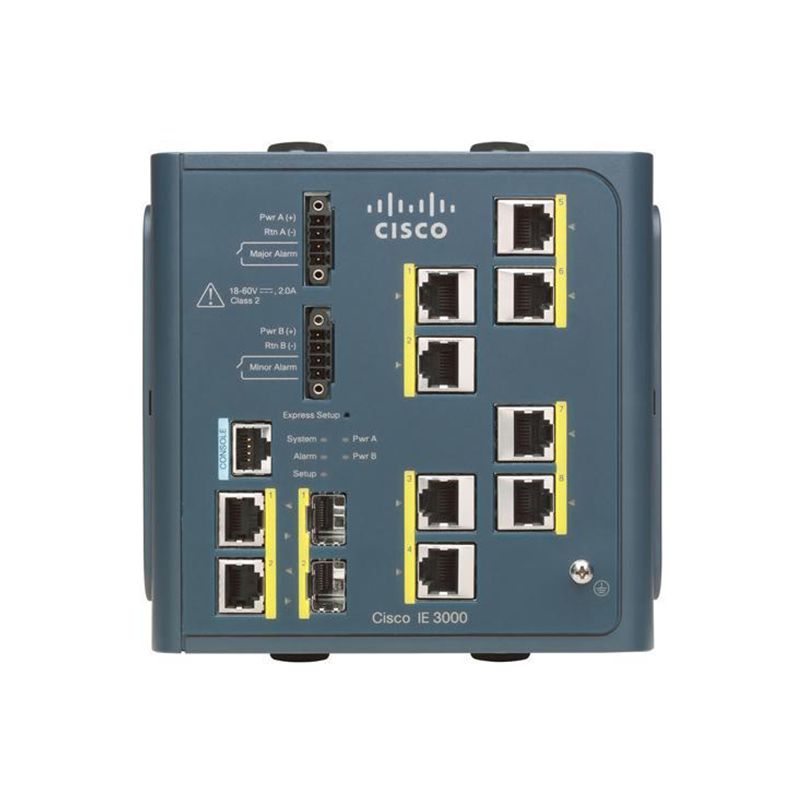

Quick Specs Figure 1 shows the appearance of IE-3000-8TC.
Table 1 shows the Quick Specs.
| Ports | 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber |
| Supported Expansion Modules | Each switch supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module |
| Power | DC input range 18VDC-60VDC |
| Software | Layer 2 LAN Base Image |
| Dimensions (H x W x D) | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D)● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D)● Cisco IEM-3000-8TM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco IEM-3000-8FM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco IEM-3000-4SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco IEM-3000-8SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco IEM-3000-4PC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco IEM-3000-4PC-4TC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)● Cisco PWR-IE50W-AC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D)● Cisco PWR-IE50W-AC-IEC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D)● Cisco PWR-IE65W-PC-AC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D)● Cisco PWR-IE65W-PC-DC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D) |
| Weight | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg)● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)● Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg)● Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg)● Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg)● Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg)● Cisco IEM-3000-4PC=: 2.4 (1.08 Kg)● Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg)● Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg)● Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg)● Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg)● Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg) |
| Performance | ● Wire-speed switching, 16 Gbps switching fabric● Forwarding rate based on 64-byte packets: 6.5 Mpps● 128 MB DRAM● 64 MB Compact Flash memory● Configurable up to 8000 MAC addresses (Layer 2)● Configurable up to 2000 MAC addresses (Layer 3)● Configurable up to 256 IGMP multicast groups (Layer 2)● Configurable up to 1000 IGMP groups and multicast routes (Layer 3)● Configurable up to 3,000 unicast routes (Layer 3)● Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports |
| Connectors and cabling | ● 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling● 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling● 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling● 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)● 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber) |
| Indicators | ● Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications● System-status LED: System, link status, link duplex, link speed, indications |
| Operating environment | Operating temperature: -40C to +75C● -40C to +70C (Vented Enclosure – 40 LFM Air Flow)● -40C to +60C (Sealed Enclosure – 0 LFM Air Flow)● -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow)● -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours)● Storage temperature: -40C to +85C● Operating relative humidity: 10 to 95% (non-condensing)● Operating altitude: Up to 13,000 ft (3963m)● Storage altitude: Up to 15,000 ft (4573m) |
| Mean Time Between Failures (MTBF) | ● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451● Cisco IEM-3000-8TM=: 926,999● Cisco IEM-3000-8FM=: 264,689● Cisco IEM-3000-4SM=: 8,887,990● Cisco IEM-3000-8SM=: 7,732,890● Cisco IEM-3000-4PC=: 1,494,990● Cisco IEM-3000-4PC-4TC=: 1,291,440● Cisco PWR-IE50W-AC=: 1,662,359● Cisco PWR-IE50W-AC-IEC=: 1,662,359● Cisco PWR-IE65W-PC-DC=: 2,468,430● Cisco PWR-IE65W-PC-AC=: 2,488,401 |
