IE-3010-16S-8PC
Model: IE-3010-16S-8PC – Industrial Ethernet 3000 Series
Details: Rack mount switch 16 100SFP, 8 10/100 PoE, 2 GE combo uplinks, no PSU included
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-3010-16S-8PC Overview

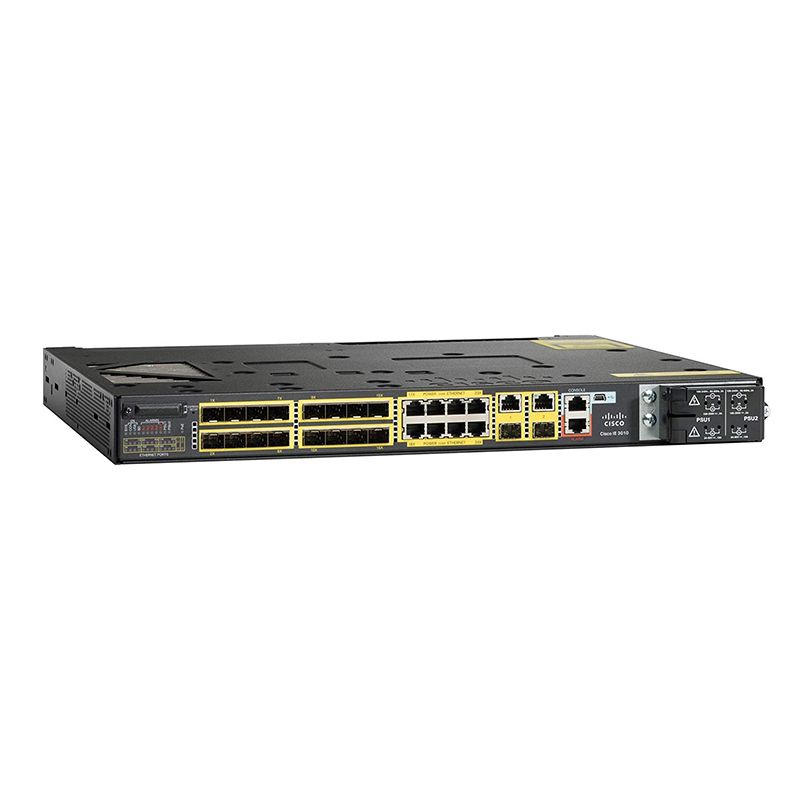

Quick Specs Figure 1 shows the appearance of IE-3010-16S-8PC.
Table 1 shows the Quick Specs.
| Ports | 16 Fast Ethernet SFP ports, 8 10/100BASETX/PoE ports, and 2 dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
| Performance and scalability | • Wire-speed switching, 8 Gbps switching fabric• Forwarding rate based on 64-byte packets: 6.5 Mpps• 256 MB DDR2 SDRAM• 1 GB SD Flash memory (128 MB enabled)• Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups.• Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes• Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
| Dimensions (H x W x D) | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
| Weight | 10 lb (4.5kg) (without power supply unit) |
| Connectors and cabling | 10/100 ports:• 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling• 100FX SFP ports (IE-3010-16S-8PC only):• 100BASE-FX, -LX, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single mode)Gigabit ports:• 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP/STP cabling• 1000BASE-SX, -LX/LH, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single-mode fiber)Console ports:• Management console port: RJ45 connector for serial connection• Management console port: USB mini type B connector for USB connection |
| Indicators | • Per-port status LEDs: Link integrity, port disabled, and activity indications• System-status LED: System activity, system integrity,• Alarm-in status LEDs: Four alarm inputs status indicator• Alarm-out status LED: Alarm status indicator• Power supply unit LED: Power output integrity and power supply presence• PoE (IE-3010-16S-8PC only): PoE activity, PoE integrity, and PoE disabled• SD Flash LED: SD flash integrity and SD flash presence• RS232 LED: RS232 console selection• USB LED: USB console selection |
| Environmental ranges | • -40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range• -40 ºF to 185ºF (-40 to +85ºC) type test for 16 hours at 85ºC• Operating altitude: 3000 m (9843 ft) at 40ºC (104ºF)• Operating relative humidity: 5% to 95% noncondensing |
| Storage and transportation | • Temperature: -40 ºF to 185ºF (-40 to +85 ºC)• Altitude: 15,000 ft (4570 m)• Relative humidity: 5% to 95% noncondensing |
| Mean time between failure (MTBF) | • Cisco IE-3010-24TC: 207,731 hrs• Cisco IE-3010-16S-8PC: 230,112 hrs |
| Warranty | Five years limited warranty |
