IE-3300-8P2S-A
Model: IE-3300-8P2S-A – Cisco Catalyst IE3000 Rugged Switches
Details: Catalyst IE3300 Rugged Series Modular PoE, NA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-3300-8P2S-A Overview

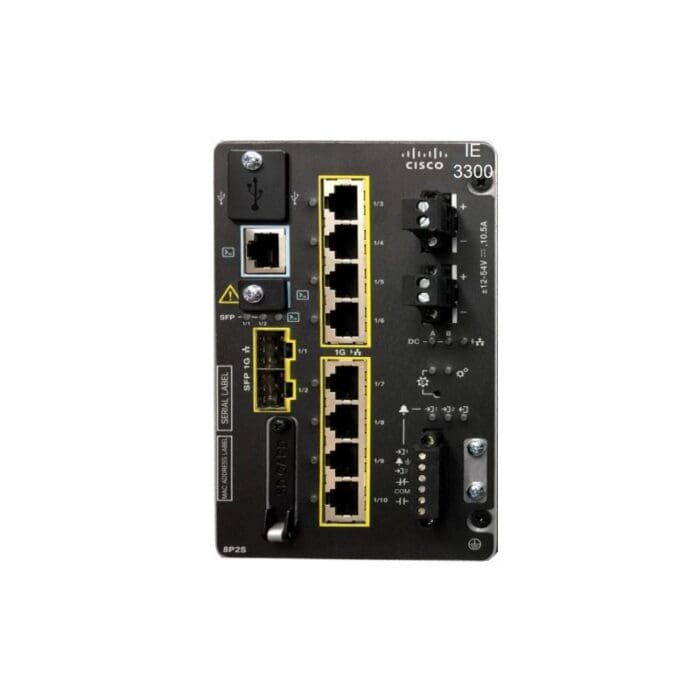

Quick Specs Figure 1 shows the appearance of IE-3300-8P2S-A.
Table 1 shows the Quick Specs.
| Description | Catalyst IE3300 with 8 GE PoE/PoE+ and 2 GE SFP, Modular, Network Advantage |
| Total ports | 10 |
| 10/100/1000 RJ45 Copper ports | 8 |
| 100/1000 SFP ports | 2 |
| PoE / PoE (+) budget | 240W (base), 360W (with module) |
| Removable storage | USB, SD card |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Dimensions (H x W x D) | 15.2 cm. x 9.1 cm. x 13.5 cm |
| Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 8 |
| Unicast MAC addresses | 8K |
| Internet Group Management Protocol (IGMP) multicast groups | 1K |
| No. of VLANs | 256 |
| IPv4 Indirect routes | 2000 |
| IPv6 Indirect routes | 512 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| DRAM | 2 GB |
| Flash [User Accessible] | 1.5 GB |
| SD card capacity | 4 GB |
| Jumbo Frames | 8996 bytes |
