IE-4010-16S12P
Model: IE-4010-16S12P – Cisco ONE Industrial Ethernet (IE) 4000 Series Platform
Details: IE4010 16x1G SFP and 12×10/100/1000 LAN BASE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-4010-16S12P Overview

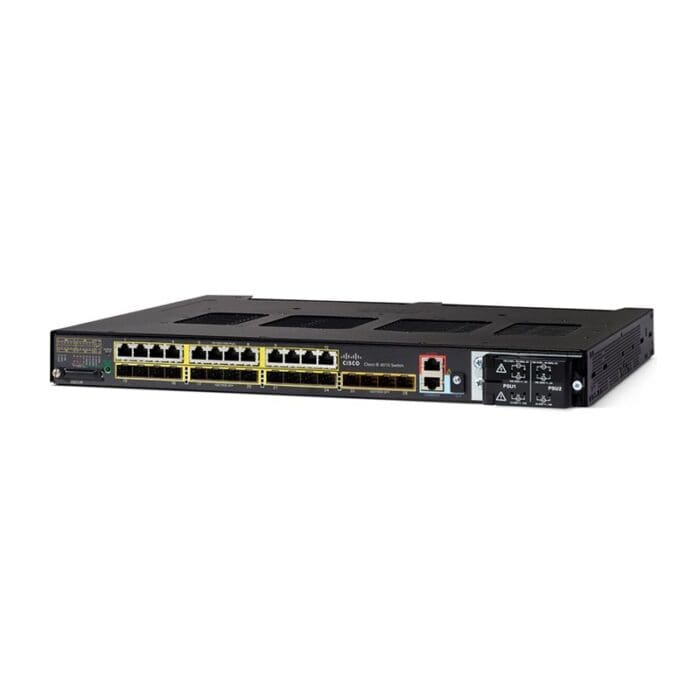

Quick Specs Figure 1 shows the appearance of IE-4010-16S12P.
Table 1 shows the Quick Specs.
| Total Ports | 28 |
| Uplinks | 4 SFP (100MB/1G) |
| SFP fiber ports | 12 (100/1000M) |
| Copper 10/100/1000 PoE/PoE+ Ports | 12 (10/100/1000M) |
| Default software | LAN Base feature set (Can be upgraded to IP Services license.) |
| Hardware | ● 1 GBDRAM● 128 MB onboard flash memory● 1-GB removable SD flash memory card● Mini-USB and traditional RJ-45 console connector |
| Alarm | Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
| Dimensions, (H x W x D) | ● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
| Weight | ● Without power supply: 12.7 lb (5.78 kg)● PWR-RGD-AC-DC-H:2.55 lb (1.16 kg)● PWR-RGD-LOW-DC-H:2.5 lb (1.13 kg)● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
| Power consumption | ● Maximum of 90W not including PoE consumption |
| Accessories | ● SD-IE-1GB= – Spare SD card● L-IE4000-RTU= -Electronic RTU IP services software license for 4010 switches● 21–in. and 23–in. ETSI rack mount brackets |
| Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
| Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
| Forwarding rate | 41.67 mpps with 64 byte packets (line rate for all ports and packet sizes) |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1000 |
| Number of VLANs | 1000 |
| IPv4 MAC security ACEs | 1000 with default TCAM template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
