IE-4010-4S24P

Original price was: $5,341.00.Current price is: $5,073.95.

Model: IE-4010-4S24P – Cisco ONE Industrial Ethernet (IE) 4000 Series Platform
Details: IE4010 4x 1G SFP, 24 10/100/1000 GE PoE LAN Base
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IE-4010-4S24P Categories: , ,
Description

IE-4010-4S24P Overview

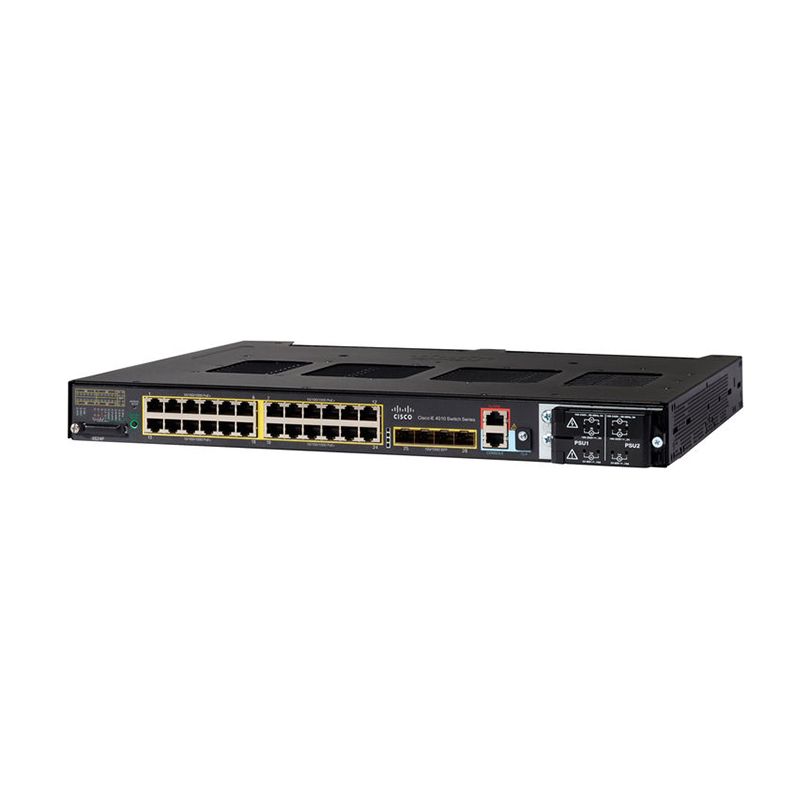

Quick Specs Figure 1 shows the appearance of IE-4010-4S24P.

Table 1 shows the Quick Specs.

Total Ports 28
Uplinks 4 SFP (100MB/1G)
Copper 10/100/1000 PoE/PoE+ Ports 24 (10/100/1000M)
Default software LAN Base feature set (Can be upgraded to IP Services license.)
Hardware ●  1 GBDRAM●  128 MB onboard flash memory●  1-GB removable SD flash memory card●  Mini-USB and traditional RJ-45 console connector
Alarm Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
Dimensions, (H x W x D) ●  1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H●  1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x  38.56 cm),  1 RU (rack unit) height with PWR-RGD-AC-DC-250
Weight ●  Without power supply: 12.1 lb (5.46 kg)●  PWR-RGD-AC-DC-H:2.55 lb (1.16 kg)●  PWR-RGD-LOW-DC-H:2.5 lb (1.13 kg)●  PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
Power consumption ●  Maximum of 90W not including PoE consumption
Accessories ●  SD-IE-1GB= – Spare SD card●  L-IE4000-RTU= -Electronic RTU IP services software license for 4010 switches●  21–in. and 23–in. ETSI rack mount brackets
Forwarding bandwidth 28 Gbps (line rate/non-blocking)
Switching bandwidth 56 Gbps(Switching bandwidth is full-duplex capacity)
Forwarding rate 41.67 Mpps with 64 byte packets (line rate for all ports and packet sizes)
Number of queues 4 egress
Unicast MAC addresses 16,000
IGMP multicast groups 1000
Number of VLANs 1000
IPv4 MAC security ACEs 1000 with default TCAM template
NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
