IE-5000-12S12P-10G
Model: IE-5000-12S12P-10G – Cisco ONE Industrial Ethernet (IE) 5000 Series Platform
Details: IE5000 12x1G SFP+12×10/100/1000 + 4 1G/10G LAN BASE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IE-5000-12S12P-10G Overview

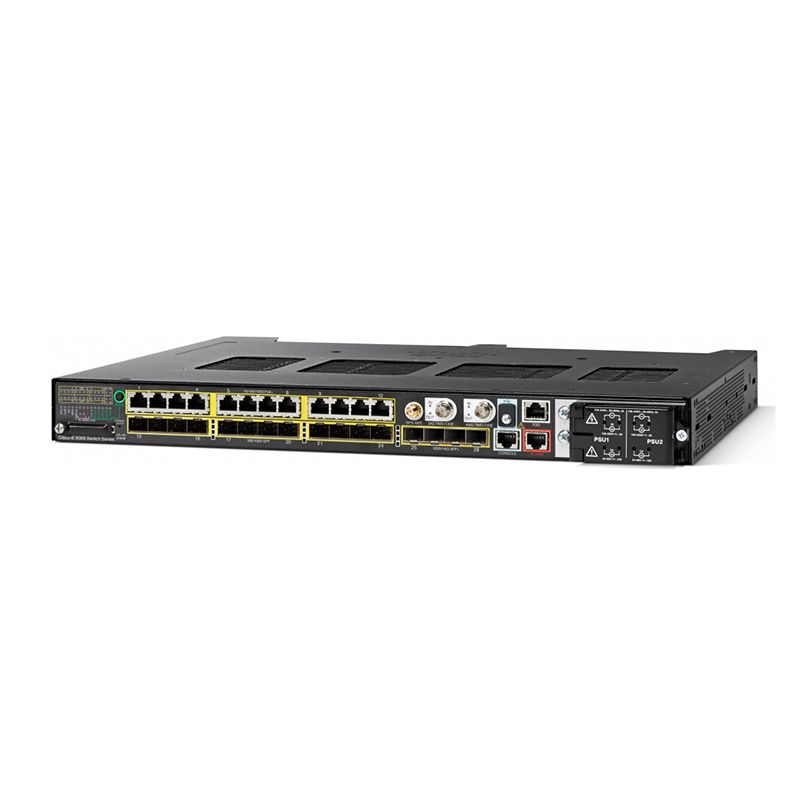

Quick Specs Figure 1 shows the appearance of IE-5000-12S12P-10G.
Table 1 shows the Quick Specs.
| Total ports | 28 |
| Uplinks | 4 SFP/SFP+ (1G/10G) |
| SFP fiber ports (S) | 12 (FE/GE) |
| Copper 10/100/1000 PoE/PoE+ ports | 12 (10/100/1000M) |
| Default software | LAN Base |
| Dimensions (H x W x D) | ● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height withPWR-RGD-AC-DC-H/PWR-RGD-LOW-DC-H● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height withPWR-RGD-AC-DC-250 |
| Weight | ● Without Power Supply: 13.7 lb (6.21 kg)●PWR-RGD-AC-DC-H: 2.55 lb (1.16kg)●PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg)●PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
| Hardware | ● 1-GB DRAM● 256-MB onboard flash memory● 1-GB removable SD flash memory card● Mini-USB connector● RJ-45 traditional console connector● GPS antenna interface (needs future software support) – GPS antenna input● Analog Timing I/O interface (needs future software support) – For analog IRIG support● Digital Timing I/O interface (needs future software support) – For digital timing such as IRIG-B TTL● TOD interface (needs future software support) – Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support |
| Alarm | ● Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
| Power consumption | ● Maximum of 90W not including PoE consumption |
| Accessories | ● SD-IE-1GB= – Spare SD card |
| Forwarding bandwidth | 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking |
| Switching bandwidth | 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
| Forwarding rate | 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate) |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,005 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
