IE-4000-8GT8GP4G-E
IE-4000-8GT8GP4G-E Original price was: $7,856.00.Current price is: $7,463.20.
Back to products
C1-C2960X-24PS-L
C1-C2960X-24PS-L Original price was: $1,798.00.Current price is: $1,708.10.

IE-5000-16S12P

Original price was: $6,537.00.Current price is: $6,210.15.

Model: IE-5000-16S12P – Cisco ONE Industrial Ethernet (IE) 5000 Series Platform
Details: IE5000 16x1G SFP and 12×10/100/1000 LAN BASE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IE-5000-16S12P Categories: , ,
Description

IE-5000-16S12P Overview

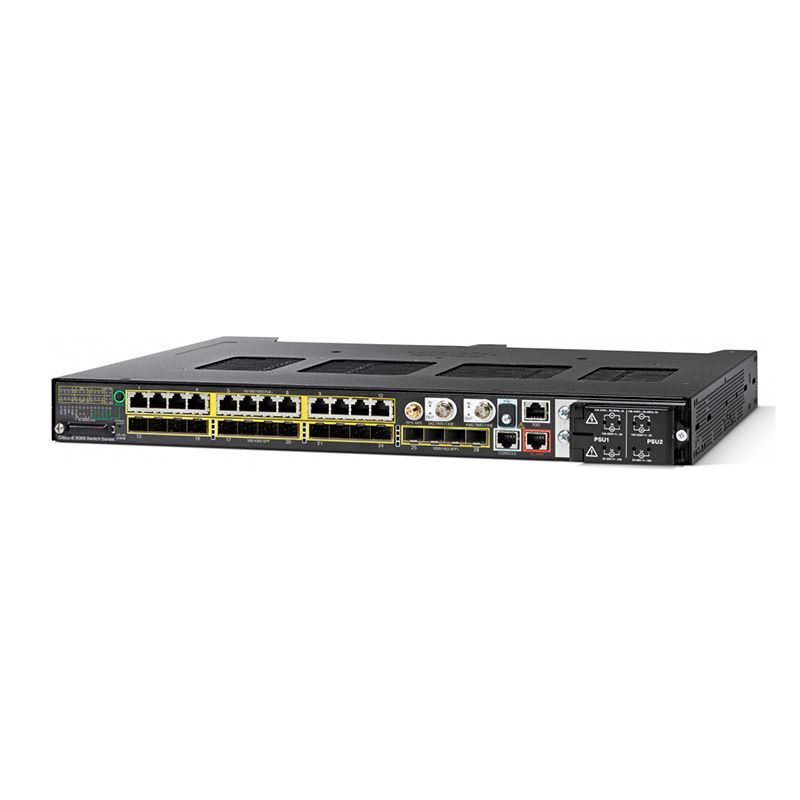

Quick Specs Figure 1 shows the appearance of IE-5000-16S12P.

Table 1 shows the Quick Specs.

Total ports 28
Uplinks 4 SFP/SFP+ (1G)
SFP fiber ports (S) 12 (FE/GE)
Copper 10/100/1000 PoE/PoE+ ports 12 (10/100/1000M)
Default software LAN Base
Dimensions (H x W x D) ●  1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height withPWR-RGD-AC-DC-H/PWR-RGD-LOW-DC-H●  1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x  38.56 cm),  1 RU (rack unit) height withPWR-RGD-AC-DC-250
Weight ●  Without Power Supply: 13.7 lb (6.21 kg)●PWR-RGD-AC-DC-H: 2.55 lb (1.16kg)●PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg)●PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
Hardware ●  1-GB DRAM●  256-MB onboard flash memory●  1-GB removable SD flash memory card●  Mini-USB connector●  RJ-45 traditional console connector●  GPS antenna interface (needs future software support) – GPS antenna input●  Analog Timing I/O interface (needs future software support) – For analog IRIG support●  Digital Timing I/O interface (needs future software support) – For digital timing such as IRIG-B TTL●  TOD interface (needs future software support) – Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support
Alarm ●  Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
Power consumption ●  Maximum of 90W not including PoE consumption
Accessories ●  SD-IE-1GB= – Spare SD card
Forwarding bandwidth 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking
Switching bandwidth 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G)
Forwarding rate 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate)
Number of queues 4 egress
Unicast MAC addresses 16,000
IGMP multicast groups 1,000
Number of VLANs 1,005
IPv4 MAC security ACEs 1,000 with default TCAM Template
NAT translation Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly

Get more information
Do you have any question about the IE-5000-16S12P?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
