-5%
Industrial 5G/4G CPE
Model: Z1 5G NSA/SA CPE – Hongdian 5G Routers
Details: It is the model of 5G/4G industrial CPE. The frequency band, interface, antenna etc. can be configured according to your needs. If there is any need,
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Industrial 5G/4G CPE Overview

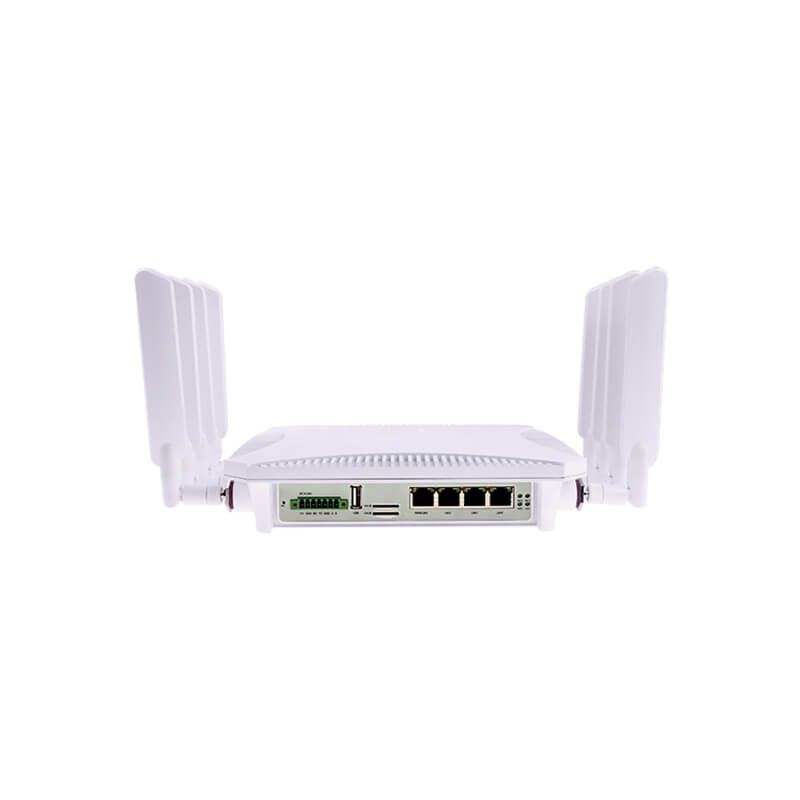

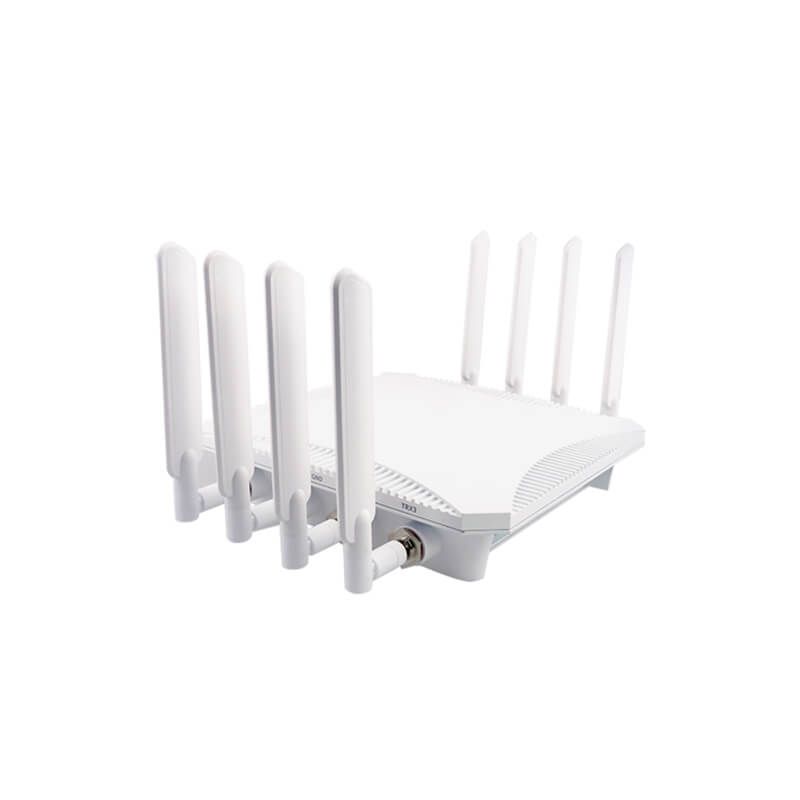

Quick Specs Figure 1 shows the appearance of Industrial 5G/4G CPE.
Table 1 shows the Quick Specs.
| Remarks | 5G NSA/SA industrial intelligent gateway |
| Network Type | 4G/5G |
| Frequency | 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/B46/B48/B71 |
| CPU | Qualcomm IPQ4029 high performance processor |
| RAM | 512MB |
| Built-in storage | 8GB EMMC |
| Module | 5G module(Qualcomm X55 based) |
| Interface | 1*Reset button1*WAN port(10/100/1000Mbps adaptive)3*LAN ports(10/100/1000Mbps adaptive)1*USB2.01*RS232, 1*RS4852*SIM slot(Dual module Dual SIM)1*TF slot(Built in)1*2pin terminal power connector4*4G/5G antenna interface, 4*WiFi antenna interface, 1*GPS antenna interface |
| Power supply | Working Voltage: +9V〜+24V DC |
| Power consumption | Working power consumption: Standby 450mA@12V DC, Max 2.2A@12V DC |
| Other | Size(Length * width * height): 216*216*51.5(mm) Operating temperature: -30〜+75ºCStorage temperature: -40〜+85ºCRelative humidity: ≤95%(No condensation) |
