IPC-EW5541-AS

Original price was: $137.00.Current price is: $130.15.

Model: IPC-EW5541-AS – Dahua 5MP IP Cameras
Details: 5MP WizMind IR Fisheye Network CAMERA.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-EW5541-AS Categories: , , ,
Description

IPC-EW5541-AS Overview

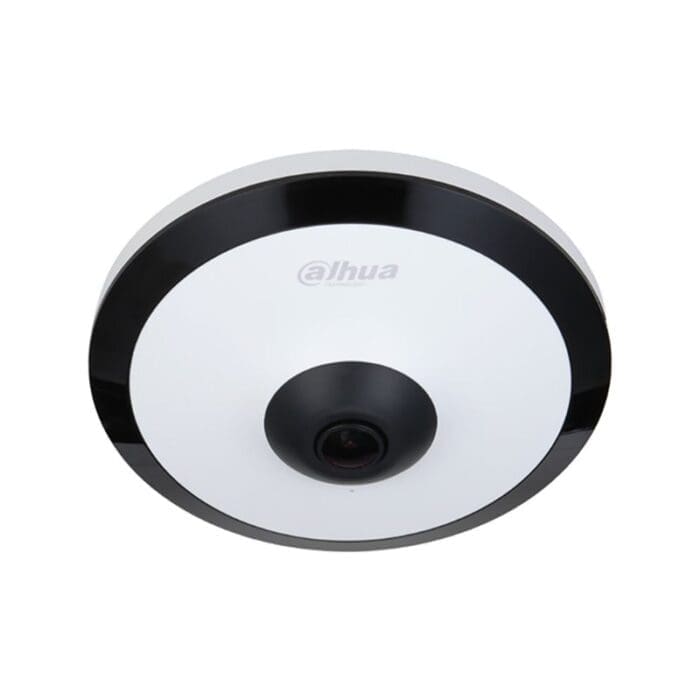

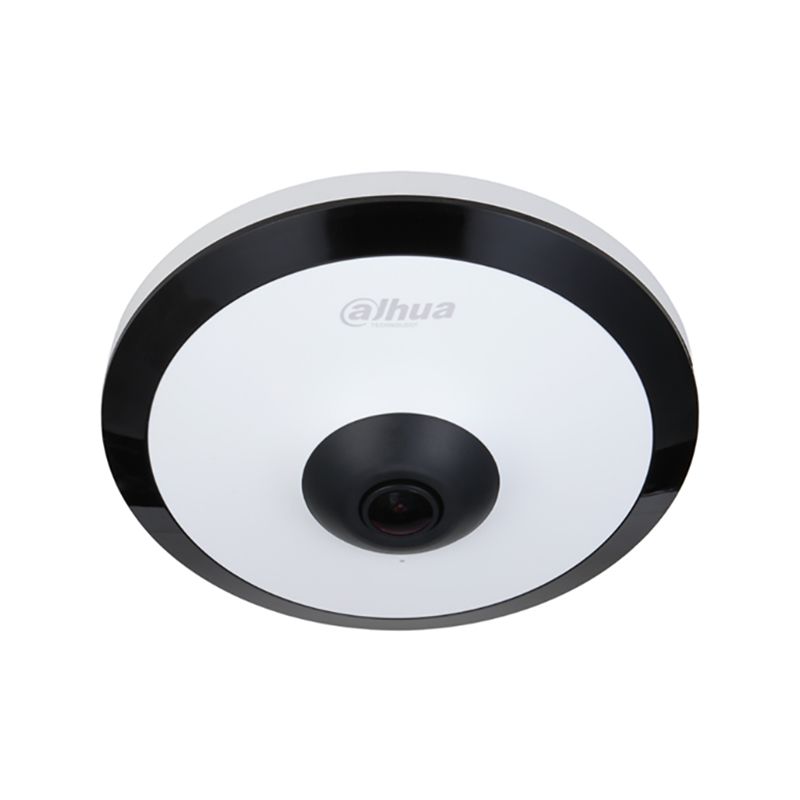

Quick Specs Figure 1 shows the appearance of IPC-EW5541-AS.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7″ 5Megapixel progressive CMOS
Max. Resolution 2592 (H) x 1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.006 Lux@F2.0 (Color, 30IRE)0.0006 Lux@F2.0 (B/W, 30IRE)0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 10 m (32.8 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Lens Type Fixed-focal
Mount Type M12
Focal Length 1.4 mm
Max. Aperture F2.0
Field of View Horizontal: 180°Vertical: 180°Diagonal: 180°
Iris Type Fixed
Close Focus Distance 0.2 m (0.7 ft)
DORI Distance Detect
28 m (91.9 ft) 11.2 m (36.7 ft)
Heat Map Yes
IVS (Perimeter Protection) Tripwire; intrusion
People Counting Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video Compression Video Compression
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (2592 x 1944 @1–25/30 fps)sub stream (704 x 576 @1–25 fps/704 x 480 @1–30 fps)third stream (1280 x 720 @1–25/30 fps)
Stream Capability 3 streams
Resolution 5M (2592 x 1944); 3M (2048 x 1536); UXGA (1600 x 1200); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Privacy Masking 4 areas
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G726
Alarm Event No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8, IE9 and IE11ChromeFirefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power Supply 12V DC/PoE
Power Consumption Basic power consumption: 3.6W (12V DC); 4.4W (PoE)Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)
Operating Conditions –10°C to +50°C (14°F to +122°F)/Less than 95% RH
Strorage Conditions –40°C to +60°C (–40°F to +140°F)
Casing Metal + plastic
Dimensions 44.6 mm Ă— Φ126.2 mm (1.8″ Ă— Φ5.0″)
Net Weight 299 g (0.7 lb)
Gross Weight 441 g (1.0 lb)
