IPC-HDBW3449E-AS-NI

Original price was: $87.00.Current price is: $82.65.

Model: IPC-HDBW3449E-AS-NI – Dahua 4MP IP Cameras
Details: Dahua 4MP Lite AI Full-color Fixed-focal Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW3449E-AS-NI Categories: , ,
Description

IPC-HDBW3449E-AS-NI Overview

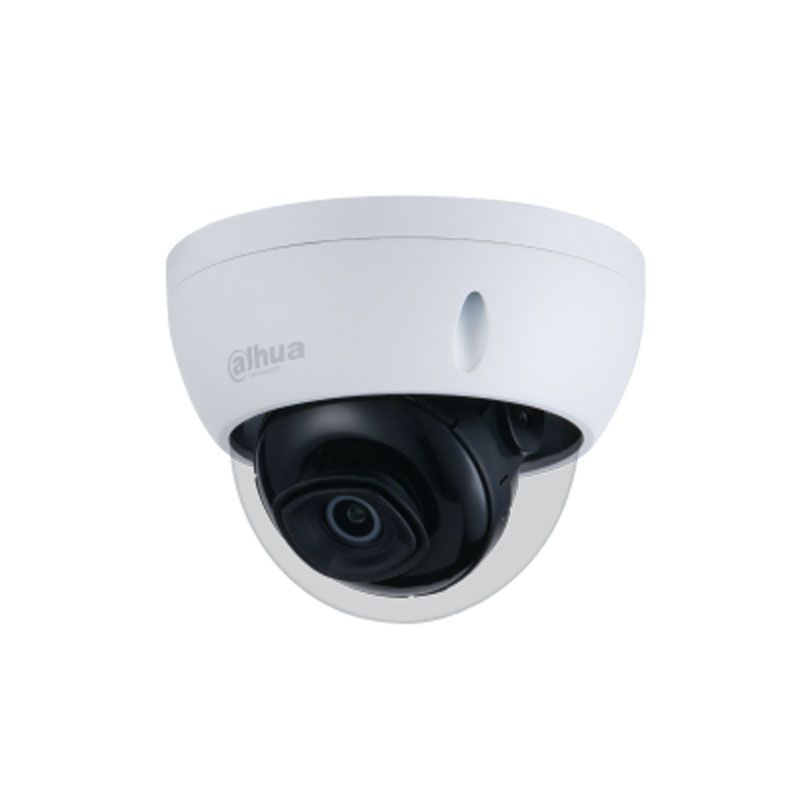

Quick Specs Figure 1 shows the appearance of IPC-HDBW3449E-AS-NI.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7”4Megapixel progressive CMOS
Effective Pixels 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 Lux @ F1.0
Pan/Tilt/Rotation Range Pan: 0°–355°Tilt: 0°–65°Rotation: 0°–355°
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm
Max. Aperture F1.0
Field of View 3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°
Iris Type Fixed
Close Focus Distance 3.6 mm: 2.4 m (7.9 ft)
DORI Distance Lens
3.6mm 80.0 m(262.5 ft)
Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (sub stream)
Smart Codec H.264: YesH.265: Yes
Video Frame Rate Main stream (2688 × 1520 @ 1–25/30 fps)sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)third stream (1280 × 720 @ 1–25/30 fps)
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
Day/Night Color/B/W
BLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio Compression G.711a; G.711Mu; G726; AAC
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene self-adaptation Yes
User/Host 20 (Total bandwidth: 64M.)
Edge Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8; IE9; IE11ChromeFirefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power Supply 12V DC/PoE
Power Consumption < 4.4W
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67; IK10
Casing Metal
Dimensions 81 mm × Φ109.9 mm (3.2″ × Φ4.3″)
Net Weight 378 g (0.8 lb)
Gross Weight 523 g (1.2 lb)

Get more information
Do you have any question about the IPC-HDBW3449E-AS-NI?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

100% Quality Assurance: All items are ORIGINAL and GENUINE only.

Free Technical Support: Our FREE Technical Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
