IPC-HDBW5442R-ASE
Model: IPC-HDBW5442R-ASE – Dahua 4MP IP Cameras
Details: 4MP WDR IR Dome AI Network Camera; 2.8 mm fixed lens (3.6 mm, 6.0 mm optional); 1/1 Alarm in/out, 1/1 audio in/out
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW5442R-ASE Overview

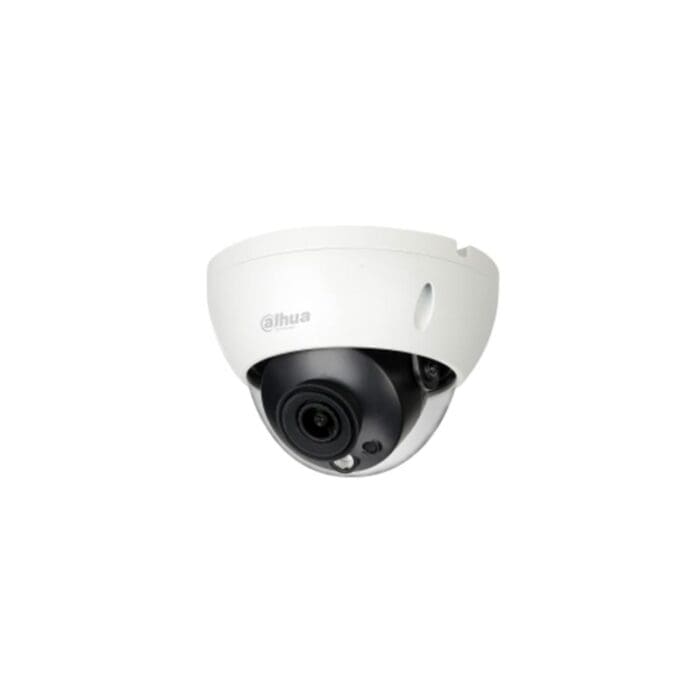

Quick Specs Figure 1 shows the appearance of IPC-HDBW5442R-ASE.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | IPC-HDBW5442R-ASE |
| Camera Type | 4MP WDR IR Dome AI Network Camera |
| Image Sensor | 1/1.8?? 4 Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) ?? 1520 (V) |
| RAM | 1 GB |
| ROM | 128 MB |
| Lens | 2.8 mm fixed lens (3.6 mm, 6.0 mm optional) |
| Max. Aperture | F1.6 |
| Angle of View | 120?? (H), 68?? (V), 150?? (D) |
| IR Distance | 50 meters (164 feet) |
| Day/Night | Auto (ICR) / Color / B/W |
| Audio In/Out | 1/1 |
| Alarm In/Out | 1/1 |
| Video Compression | H.265, H.264, H.264B, H.264H, MJPEG |
| Frame Rate | Main Stream: 2688 ?? 1520 (1?C25/30 fps) |
| Bit Rate | H.265: 12 Kbps?C8454 Kbps, H.264: 32 Kbps?C10240 Kbps |
| Intelligent Functions | IVS (Tripwire, Intrusion), Face Detection, People Counting |
| Power Supply | DC12V, PoE (802.3af) |
| Operating Temperature | ?C30??C to +60??C (?C22??F to +140??F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
Get more information
Do you have any question about the IPC-HDBW5442R-ASE?
Contact us now via Live Chat or sales@metafinitivetech.com
