IPC-HDBW5541R-ASE
Model: IPC-HDBW5541R-ASE – Dahua 5MP IP Cameras
Details: 5MP WDR IR Dome AI Network Camera; 2.8 mm fixed lens (3.6 mm, 6.0 mm optional); 1/1 Alarm in/out, 1/1 audio in/out
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW5541R-ASE Overview

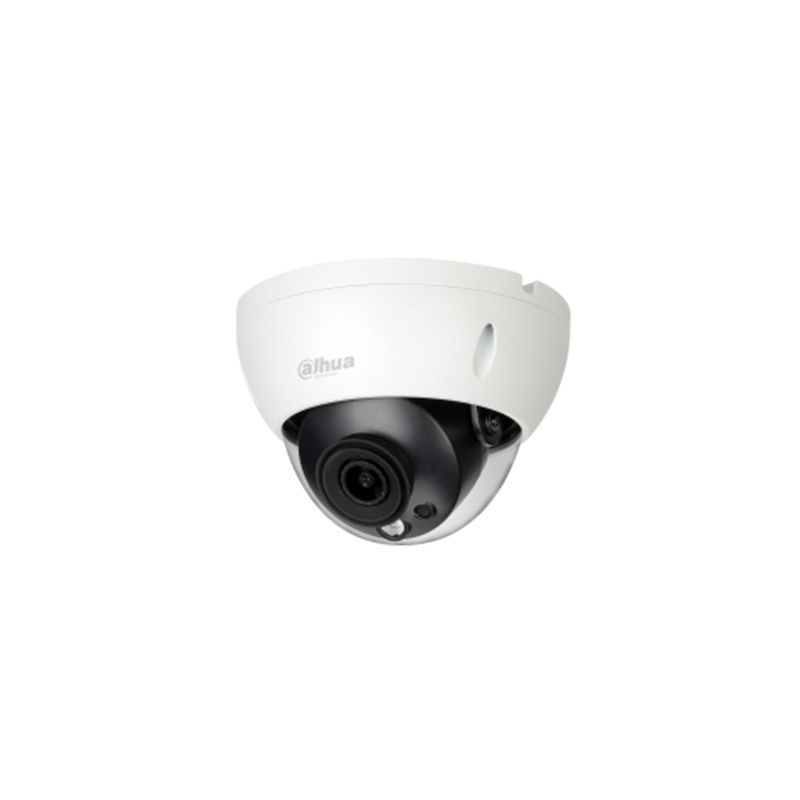

Quick Specs Figure 1 shows the appearance of IPC-HDBW5541R-ASE.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | IPC-HDBW5541R-ASE |
| Resolution | 5MP |
| Image Sensor | 1/2.7?? Progressive Scan CMOS |
| Lens | 2.8 mm fixed lens (3.6 mm, 6.0 mm optional) |
| Field of View | Horizontal: 104?? (2.8 mm), Vertical: 57?? (2.8 mm) |
| IR Distance | 30 meters (98 feet) |
| Day/Night Mode | Auto (ICR) / Color / B/W |
| Wide Dynamic Range (WDR) | 120 dB |
| Digital Noise Reduction (DNR) | 3D DNR |
| Alarm Inputs/Outputs | 1/1 |
| Audio Inputs/Outputs | 1/1 |
| Storage | MicroSD card (up to 256 GB) |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.1W |
| Operating Temperature | -30??C to +60??C (-22??F to +140??F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | ??122 mm ?? 88.9 mm |
| Intelligent Features | Face Detection, People Counting, Perimeter Protection |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Video Compression | H.265, H.264, H.264B, H264H, MJPEG |
