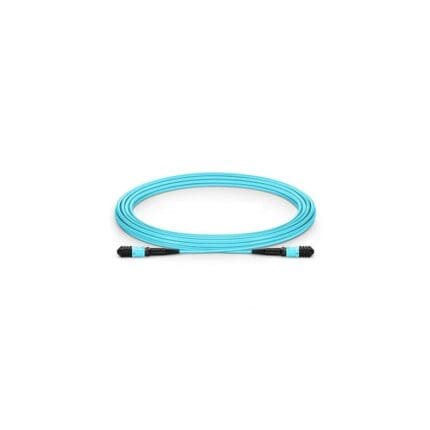

Neutral-MPOF-1M-MPOF-OM3-8C-3R-B-L Original price was: $21.25.Current price is: $20.19.

IPC-HDBW81230E-ZE

Original price was: $361.00.Current price is: $342.95.

Model: IPC-HDBW81230E-ZE – Dahua 12MP IP Cameras
Details: 12MP IR Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC-HDBW81230E-ZE Categories: , ,
Description

IPC-HDBW81230E-ZE Overview

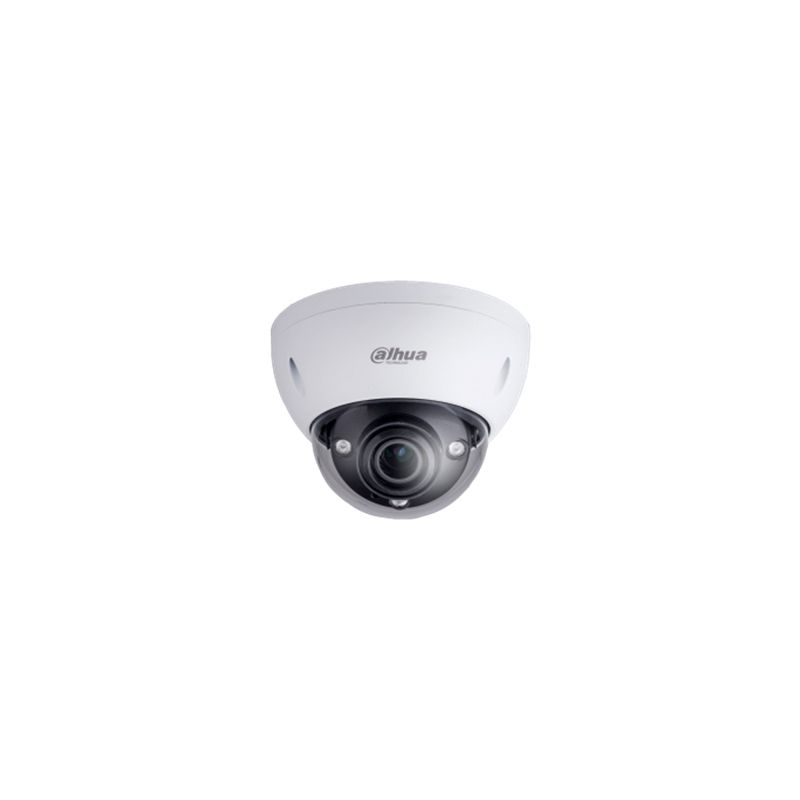

Quick Specs Figure 1 shows the appearance of IPC-HDBW81230E-ZE.

Table 1 shows the Quick Specs.

Image Sensor 1/1.7″ 12Megapixel progressive scan CMOS
Effective Pixels 4000(H)x3000(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.01Lux/F1.53(Color,1/3s,30IRE)0.1Lux/F1.53(Color,1/30s,30IRE)0Lux/F1.53(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m(164ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens Type Motorized /Auto Iris(HALL)
Mount Type Board-in
Focal Length 4.1~16.4mm motorized
Max.Aperture F1.53
Angle of View H: 105°~35°, V:77°~26°(12MP,4:3)H: 101°~32°, V:57°~18°(8MP,16:9)
Optical Zoom 4x
Focus Control Motorized
Predictive Focus Algorithm(PFA) Support
Close Focus Distance 1m(3.28ft)
DORI Distance Lens
W 115m(377ft)
T 227m(909ft)
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection, People Counting, Heat Map
Compression G.711a/G.711Mu/AAC/ G.726
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 12M(4000×3000)/ 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048×1536)/ 3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480) / VGA(640×480)/CIF(352×288/342×240)
Frame Rate Main Stream: 12M(1~20fps)/ 4K(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~ 16384KbpsH.265: 14~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR/ SSA
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) Support
Smart IR Support
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NASLocal PC for instant recordingMirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1 channel In: 5mA 5VDC1 channel Out: 1A 30VDC / 0.5A 50VAC
Power Supply DC12V,AC24V, PoE+ (802.3at)(Class 4)
Power Consumption <18W
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Strorage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Casing Metal
Dimensions Φ159.1mmx 117.9mm(Φ6.26″x4.64″)

Get more information
Do you have any question about the IPC-HDBW81230E-ZE?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

100% Quality Assurance: All items are ORIGINAL and GENUINE only.

Free Technical Support: Our FREE Technical Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
