-5%
IPC-HDW8341X-3D-S2
Model: IPC-HDW8341X-3D-S2 – Dahua 3MP IP Cameras
Details: 3MP WizMind Dual-Lens Network Camera,3MP WizMind Dual-Lens Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDW8341X-3D-S2 Overview

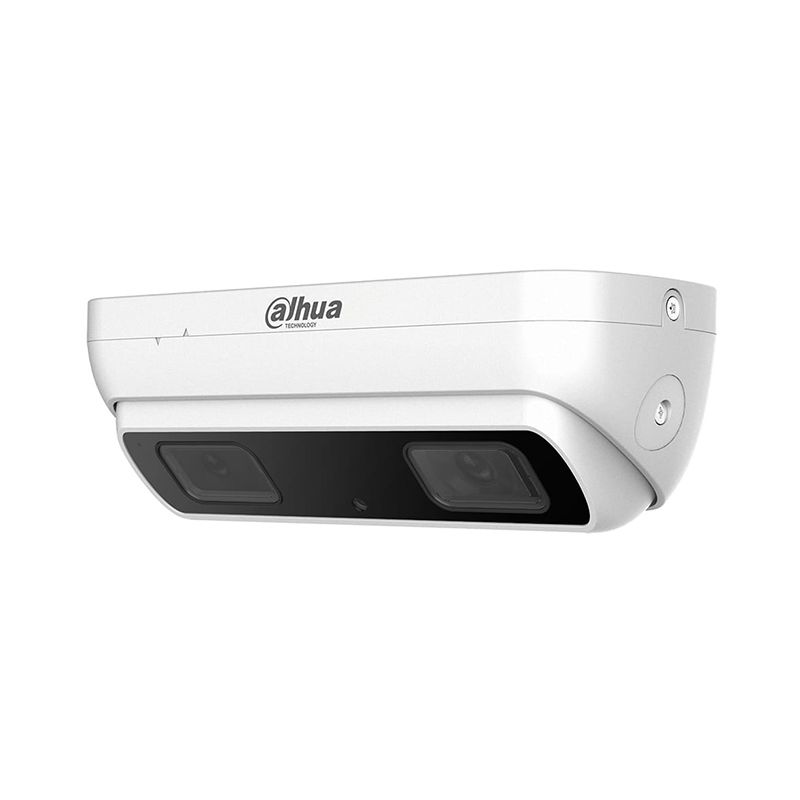

Quick Specs Figure 1 shows the appearance of IPC-HDW8341X-3D-S2.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | IPC-HDW8341X-3D-S2 |
| Camera Type | 3MP WizMind Dual-Lens Network Camera |
| Image Sensor | 1/2.8�� 3 Megapixel CMOS |
| Effective Pixels | 3072(H) �� 2048(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3s~1/100,000s |
| Minimum Illumination | 0.005Lux/F2.0 (Color) |
| S/N Ratio | More than 50dB |
| IR Distance | Up to 50m (164ft) |
| IR On/Off Control | Auto / Manual |
| Day/Night | Auto(ICR) / Color / B/W |
| Video Compression | H.265/H.264 |
| Resolution | 3MP (2048��1536) |
| Frame Rate | 50/60Hz: 20fps@3MP(2048��1536) |
| Bit Rate | H.264: 24 ~ 3072Kbps, H.265: 14 ~ 2048Kbps |
| Audio Compression | AAC(G.711A/G.711Mu/G.726) |
| Audio Input | 1 channel (RCA) |
| Audio Output | 1 channel (RCA) |
| Network Interface | RJ-45 (10/100Base-T) |
| Protocols | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6 |
| Power Supply | DC12V; PoE (802.3af) |
| Power Consumption | 12W |
| Operating Conditions | -30��C ~ +60��C (-22��F ~ +140��F) / Less than ��95% RH |
| Ingress Protection | IP67 |
| Dimension | ?164.7mm��69.8mm (?6.48″��2.75″) |
