IPC-HFW1230S-S5
Model: IPC-HFW1230S-S5 – Dahua 2MP IP Cameras
Details: IPC-HFW1230S-S5 is the Dahua 2MP IR Mini-Bullet Network Camera. Dahua Entry series IP camera with efficient H.265 / H.264 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW1230S-S5 Overview

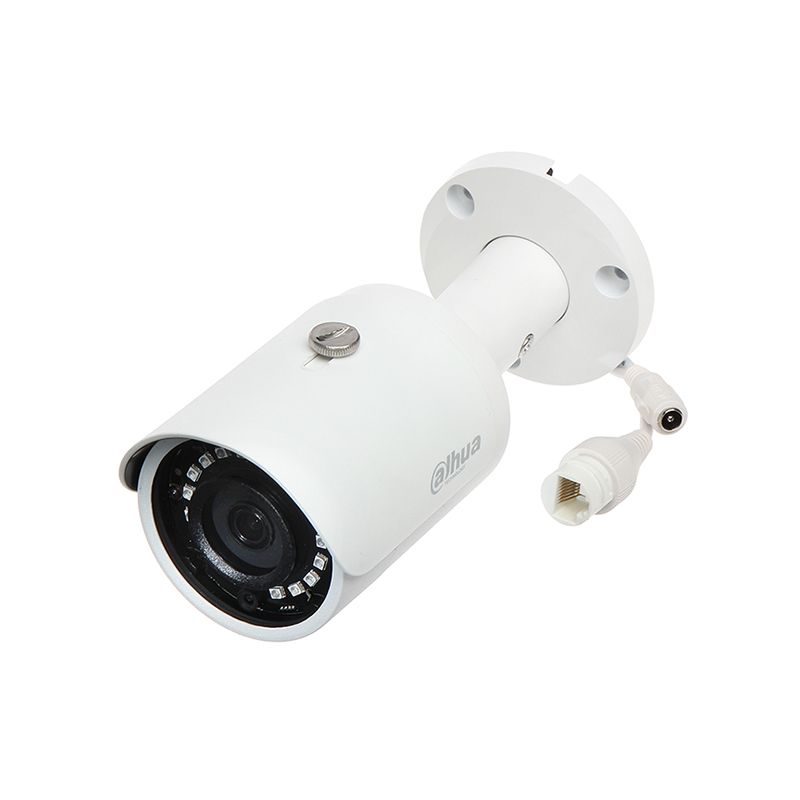

Quick Specs Figure 1 shows the appearance of IPC-HFW1230S-S5.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.01 Lux @F2.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 18 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0° to 360°Tilt: 0° to 90°Rotation: 0° to 360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | 2.8 mm: F2.03.6 mm: F2.0 |
| Field of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft)3.6 mm: 0.8 m (2.6 ft) |
| DORI Distance | Lens |
| 2.8 mm | 38.6 m(126.6 ft) |
| 3.6 mm | 49.7 m(163.1 ft) |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/Smart H.264+ |
| Video Frame Rate | Main Stream:1920 × 1080 (1 fps–25/30 fps)Sub stream:704 × 576 (1 fps–25 fps)704 × 480 (1 fps–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP |
| Browser | IEChromeFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
| Certifications | CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic power consumption: 1.5W (12V DC); 2.3W (PoE)Max. power consumption (ICR + H.265+IR intensity): 4.3W (12V DC); 5.5W (PoE) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection | IP67 |
| Casing | Metal + plastic |
| Product Dimensions | 164.6 mm × Φ70 mm (6.5″ × Φ2.8″) |
